Item

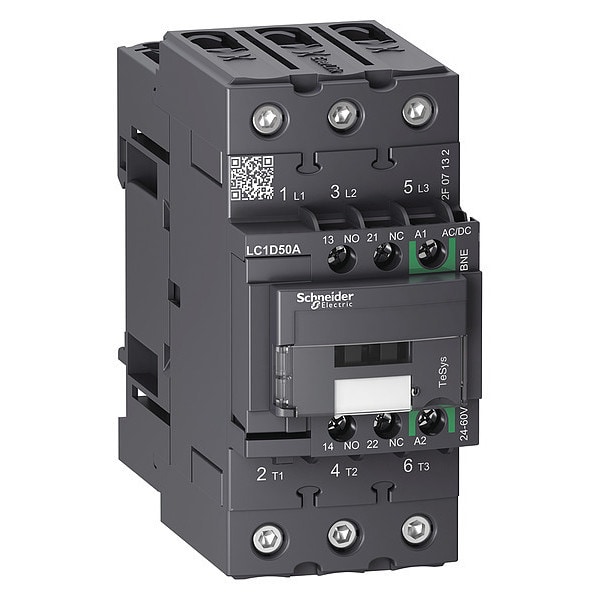

IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V-60V AC/DC
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw Clamp
Number of Auxillary Contacts
2
Standards
CCC, CSA, CSA C22.2 No 60947-4-1, DNV-GL, EAC, EN/IEC 60947-4-1, EN/IEC 60947-5-1, IEC 60335-1, KC, LROS, UKCA, UL Listed, UL 60947-4-1
Frame / Series / Class / Code
TeSys
HP @ 3 Phase - 575V
40 hp
Enclosure NEMA Rating
No Enclosure
Includes
Everlink Power Connections
Includes Protective Cover
Yes
Tightening Torque
1.7 Nm (Control Circuit), 5 to 8 Nm (Power Circuit)
Control Circuit Voltage Limits
Drop-Out AC/DC: Less Than 0.1 Uc (at -40 to 70°C), Operational AC: 0.85 to 1.1 Uc (at -40 to 60°C), Operational DC: 0.8 to 1.1 Uc (at -40 to 60°C), Operational AC/DC 1 to 1.1 Uc (at 60 to 70°C)
Electrical Durability
1.8 Mcycles (42 A, AC-3, Less than 440 V); 0.5 Mcycles (80 A, AC-1, Less than 440 V); 1.8 Mcycles (42 A, AC-3e, Less than 440 V)
Vibration Resistance
4 G (Contactor Closed), 2 G (Contactor Open)
Operating Time
55 to 65 ms (Closing), 20 to 120 ms (Opening)
Switching Current
5 mA (Signalling Circuit)
Shock Resistance
15 G for 11 ms (Contactor Closed), 10 G for 11 ms (Contactor Open)
Environmental Attributes
Mercury Free, Pollution Degree 3
Impulse Withstand Voltage
6 kV
Rated Insulation Volts
690V
Max. Operating Watts
15 kW (at 220 to 230V AC 50 Hz AC-3), 22 kW (at 380 to 400V AC 50 Hz AC-3), 25 kW (at 415V AC 50 Hz AC-3), 30 kW (at 440V AC 50 Hz AC-3), 30 kW (at 500V AC 50 Hz AC-3), 33 kW (at 660 to 690V AC 50 Hz AC-3), 15 kW (at 220 to 230V AC 50 Hz AC-3e), 22 kW (at 380 to 400V AC 50 Hz AC-3e), 25 kW (at 415V AC 50 Hz AC-3e), 30 kW (at 440V AC 50 Hz AC-3e), 30 kW (at 500V AC 50 Hz AC-3e), 33 kW (at 660 to 690V AC 50 Hz AC-3e)
Overvoltage Category
CAT III
Signalling Circuit Frequency
25 to 400 Hz
Rated Breaking Capacity
900 A @ 440V
Rated Making Capacity
900 A @ 440V (Power Circuit), 140 A (AC Signalling Circuit), 250 A (DC Signalling Circuit)
Fuse Amps
10 A (Signalling Circuit), 100 A (Type 1 Power Circuit), 100 A (Type 2 Power Circuit)
Rated Short-Time Withstand Current
100 A (For 1 s Signalling Circuit), 120 A (For 500 ms Signalling Circuit), 140 A (For 100 ms Signalling Circuit), 84 A (at 40°C for 10 min Power Circuit), 208 A (at 40°C for 1 min Power Circuit), 400 A (at 40°C for 10 s Power Circuit), 810 A (at 40°C for 1 s Power Circuit)
Operating Speed
3600 cycles per hr
Features
Built-In Bi-Directional Peak Limiting
Application
Motor Control, Resistive Load
Insulation Resistance Range
Greater Than 10 MOhms (Signalling Circuit)
Switching Voltage
17 V (Signalling Circuit)
Mechanical Durability
6 Mcycles
Horsepower @ Single Phase - 240V AC
7 1/2 hp
Horsepower @ Three Phase - 208V AC
15 hp
Full Load Current - Inductive
50 A
Horsepower @ Three Phase - 600V AC
40 hp
Mounting Style
DIN Rail, Plate
Maximum Operating Temperature
140 Degrees F
Mechanical Operating Durability
6,000,000
Horsepower @ Three Phase - 480V AC
40 hp
Horsepower @ Three Phase - 240V AC
15 hp
Minimum Operating Temperature
-40 Degrees F
Horsepower @ Single Phase - 120V AC
3 hp
Number of Normally Open Main Contacts
3
Full Load Current - Resistive
80 A
Embedded Surge Suppressor
No
Maximum Voltage Rating
690V AC
Electrical Operating Durability
1,800,000, 500,000
Includes Auxiliary Contacts
Yes
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Fire Resistant, Insulation Resistant
Conventional Free Air Thermal Current
80 A (at 60°C Power Circuit), 10 A (at 60°C Signalling Circuit)
