  15. Contact Block, 1NO/1NC Slow Break, 16mm

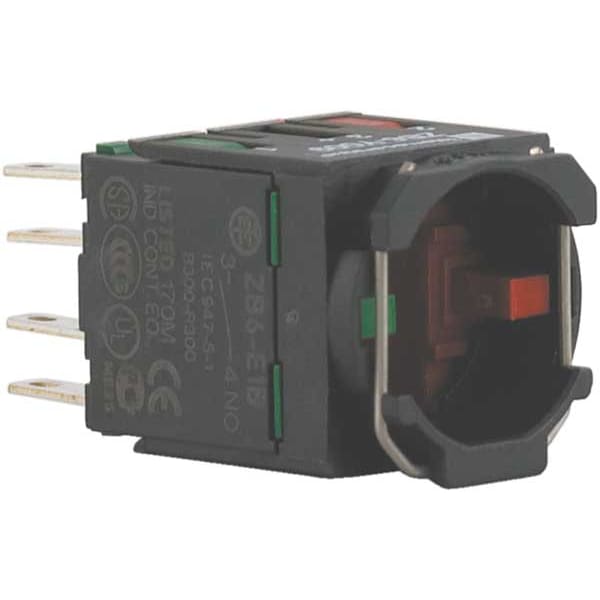

Schneider Electric Contact Block, 1NO/1NC Slow Break, 16mm ZB6Z5B - main

Contact Block, 1NO/1NC Slow Break, 16mm

  • Mfr # ZB6Z5B

  • Zoro # G0255841

product price: $15.25
/ea

Key Features

Contact Rating
6A @ 250V AC
Size
16 mm
Action
Momentary/Break Before Make
Application
Operator
Contact Form
1NO/1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB6Z5B
Zoro #
G0255841
UPC #
785901367277
Country of Origin
Spain

Dimensions

Size
16 mm
Cad Overall Depth
40 mm
Cad Overall Height
18 mm
Cad Overall Width
18 mm
Manufacturer Warranty Length
18 mo
Connection Size
16 mm

Details

Item
Contact Block
Contact Rating
6A @ 250V AC
Action
Momentary/Break Before Make
Application
Operator
Contact Form
1NO/1NC
Color
Black
For Use With
Schneider 16mm Push Buttons
NEMA Contact Rating Designation
B300/R300
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C4520, JIS C852, UL 508
Terminal Connection
Slip On or Faston Connector or Quick Connector
Positive Opening
with EN/IEC 60947-5-1 appendix K
Protective Treatment
TC
Electrical Shock Protection Class
class II IEC 61140
Contacts Usage
standard
Electrical Reliability
λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of Protection
IP65 IEC 60529
Fixing Collar Material
plastic
Operating Force
1.6 N NO changing electrical state || 2.5 N NC changing electrical state
Device Short Name
ZB6
Contact Operation
slow-break
[Us] Rated Supply Voltage
<= 250 V
Short-Circuit Protection
6 A cartridge fuse gG EN/IEC 60947-5-1
Connections - Terminals
Faston connector || Faston connector 2.8 x 0.5 mm
Terminals Description Iso N°1
(11-12)NC
Contacts Material
silver alloy (Ag/Ni)
Product Certifications
GOST || CSA || UL || CCC
Ambient Air Temperature For Operation
-25-70°C
Contacts Type And Composition
1 NO + 1 NC
Ambient Air Temperature For Storage
-40-70°C
[Ie] Rated Operational Current
3 A 120 V, AC-15, B300 || 1.5 A 240 V, AC-15, B300 || 0.1 A 250 V, DC-13, R300 || 0.22 A 125 V, DC-13, R300
Operating Travel
1 mm NC changing electrical state) || 2 mm NO changing electrical state) || 4.3 mm total travel)
Vibration Resistance
+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6
Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Product Or Component Type
complete body for push-buttons or selector switches
Rated Supply Voltage
Less than or Equal to 250 V
Rated Operational Current
3 A 120 V, AC-15, B300; 1.5 A 240 V, AC-15, B300; 0.1 A 250 V, DC-13, R300; 0.22 A 125 V, DC-13, R300
Terminals Description Iso N°1
(11-12)NC
DC Contact Rating
0.1 A @ 250 V, 0.22 A @ 125 V
AC Contact Rating
1.5 A @ 240 V, 3 A @ 120 V
Switch Action
Momentary
Compatible Operator
Push Button
Compatible with Series
ZB6
Includes Mounting Block
Mounting Block Included
Terminal Connection Type
Faster Connector

Description

Contact Block, Contact Form 1NO/1NC, Contact Rating 6A @ 250V AC, For Use With Schneider 16mm Push Buttons, Action Momentary/Break Before Make, 16 mm, Application Operator, NEMA Contact Rating Designation B300/R300, Color Black, Terminal Connection Slip On or Faston Connector or Quick Connector, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-5, JIS C4520, JIS C852, UL 508
