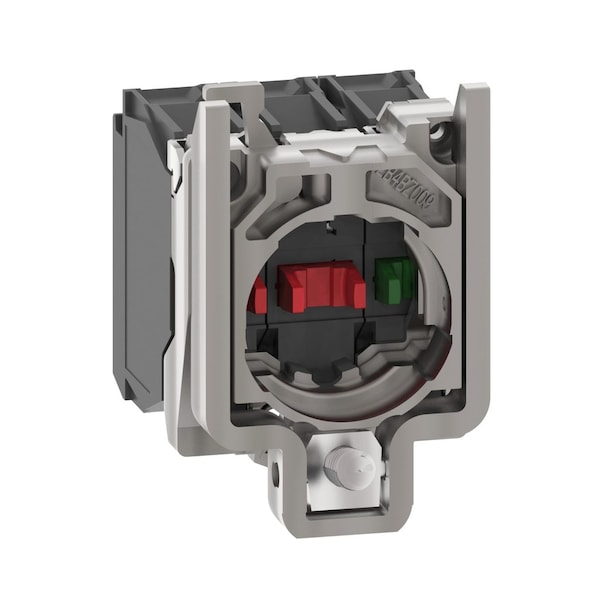

Schneider Electric Contact Block, 1NO/1NC ZB4BZ141 - main

Contact Block, 1NO/1NC

  • Mfr # ZB4BZ141

  • Zoro # G9083485

product price: $50.95
/ea

Key Features

Standards
EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Device Short Name
ZB4
Electrical Durability
10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZB4BZ141
Zoro #
G9083485
UPC #
-
Country of Origin
France

Dimensions

Cad Overall Depth
37 mm
Cad Overall Width
30 mm
Cad Overall Height
47 mm

Details

Item
Contact Block
Standards
EN/IEC 60947-5-4 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1
Electrical Reliability
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Device Short Name
ZB4
Electrical Durability
10000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 10000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Contact Operation
slow-break
[Ui] Rated Insulation Voltage
600 V 3)EN 60947-1
Ip Degree Of Protection
IP20 IEC 60529
Operating Torque
0.05 N.m NO changing electrical state
Contact Block Type
single
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
Product Certifications
LROS (Lloyds register of shipping) || CSA || UL || DNV || GL || BV
Product Or Component Type
complete body/contact assembly
Positive Opening
with EN/IEC 60947-5-1 appendix K
Short-Circuit Protection
10 A cartridge fuse gG EN/IEC 60947-5-1
Device Presentation
basic sub-assemblies
Head Type
standard
Mechanical Durability
5000000 cycles
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Screw Head
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Uimp] Rated Impulse Withstand Voltage
6 kV EN 60947-1
Ambient Air Temperature For Operation
-40-70°C
Contacts Usage
standard contacts
Device Composition
body || fixing collar
Contacts Type And Composition
1 NO + 2 NC
[Ith] Conventional Free Air Thermal Current
10 A EN/IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
Terminals Description Iso N°1
(11-12)NC
Contacts Material
silver alloy (Ag/Ni)
Operating Travel
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Fixing Collar Material
zamak
Tightening Torque
0.8-1.2 N.m EN 60947-1
Terminals Description Iso N°1
(11-12)NC
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V

Description

Contact Block
