- Item

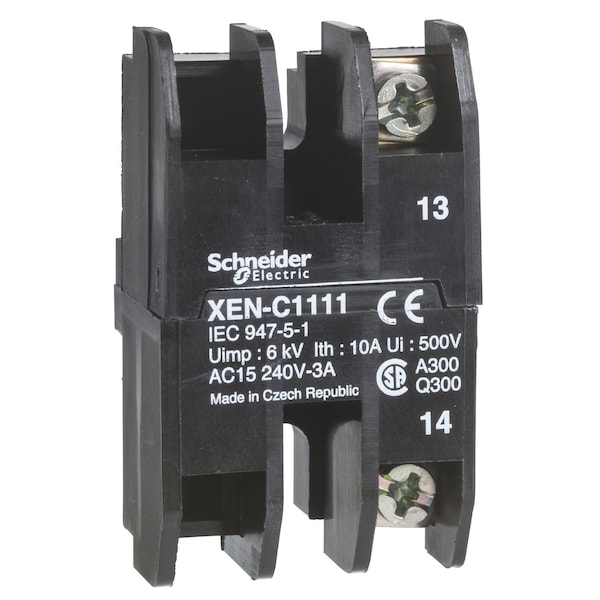

- Contact Block
- Standards
- CSA C22.2 No 14 || EN 60947-5-1 || IEC 60947-5-1
- Contact Block Type
- single
- Mounting Of Block
- front mounting
- Maximum Resistance Across Terminals
- 25 MOhm
- Ambient Air Temperature For Operation
- -25-70°C
- Terminal Identifier
- (13-14)NO || (11-12)NC
- Contact Operation
- slow-break
- Short-Circuit Protection
- 10 A fuse protection cartridge gG
- Ambient Air Temperature For Storage
- -40-70°C
- Rated Operational Power In W
- 42 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C || 45 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C || 60 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
- Component Name
- XENC
- Connections - Terminals
- screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
- Vibration Resistance
- 15 gn 10-500 Hz)IEC 60068-2-6
- Contacts Type And Composition
- 2 NO
- Mechanical Interlocking
- without mechanical interlock
- Electrical Circuit Type
- control circuit
- Contact Block Application
- single speed
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Mechanical Durability
- 1000000 cycles
- Contact Code Designation
- A300 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A || Q300 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A
- [Ui] Rated Insulation Voltage
- 500 V 3)IEC 60947-1
- Product Compatibility
- XACB || XACM
- Terminals Description Iso N°1
- (23-24)NO || (13-14)NO
- [Ithe] Conventional Enclosed Thermal Current
- 10 A
- Product Or Component Type
- contact block
- Rated Operational Power In Va
- 140 VA AC-15 1000000 cycles 60 cyc/mn 24 V 50/60 Hz 0.5 inductive || 385 VA AC-15 1000000 cycles 60 cyc/mn 48 V 50/60 Hz 0.5 inductive || 455 VA AC-15 1000000 cycles 60 cyc/mn 230 V 50/60 Hz 0.5 inductive || 525 VA AC-15 1000000 cycles 60 cyc/mn 127 V 50/60 Hz 0.5 inductive
- Type Of Operator
- spring return
- Shock Resistance
- 100 gn IEC 60068-2-27
- Conventional Enclosed Thermal Current
- 10 A
- Terminals Description ISO n°1
- (23-24)NO; (13-14)NO
- Terminals Description ISO n°1
- (23-24)NO; (13-14)NO
- Terminals Description Iso N°1
- (23-24)NO || (13-14)NO
- Includes Mounting Block
- Mounting Block Included
- AC Contact Rating
- 3 A @ 240 V
- DC Contact Rating
- 0.27 A @ 250 V
- Compatible with Series
- XACB, XACM
