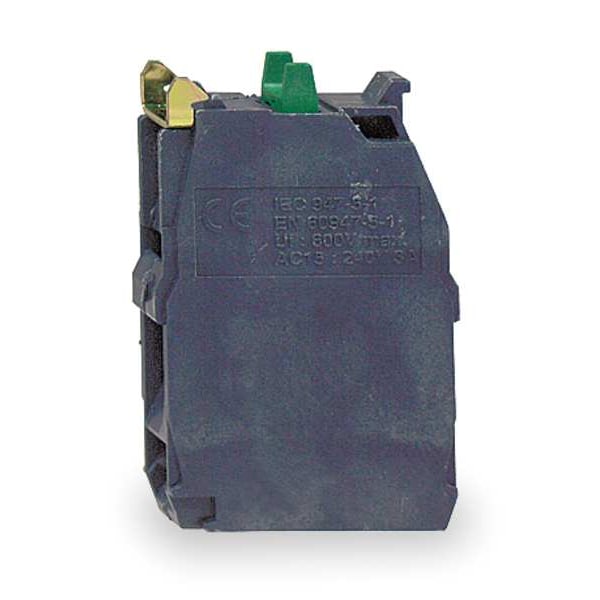

Contact Block, 2NO Slow Break, 22mm

Contact Block, 2NO Slow Break, 22mm

Mfr # ZBE203
Zoro # G3150822

$24.55

Key Features

Color

Black

NEMA Contact Rating Designation

A600/Q600

Standards

CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Contact Rating

10A @ 600V AC

Contact Form

2NO

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

ZBE203

Zoro #

G3150822

UPC #

785901355717

Country of Origin

France

Dimensions

Size

22 mm

Manufacturer Warranty Length

18 mo

Connection Size

22 mm

Details

Item

Contact Block

Color

Black

NEMA Contact Rating Designation

A600/Q600

Standards

CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508

Contact Rating

10A @ 600V AC

Contact Form

2NO

For Use With

Chrome, Plastic Operators (ZB4 or ZB5 Operators)

Terminal Connection

Screw/Clamp

Action

Momentary

Application

Operator

Shock Resistance

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Ambient Air Temperature For Storage

-40-70Â°C

Connections - Terminals

screw clamp terminals, <= 2 x 1.5 mmÂ² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mmÂ² without cable end EN 60947-1

Protective Treatment

Product Certifications

GOST || DNV || CSA || UL || LROS (Lloyds register of shipping) || CCC || GL || BV

Contacts Type And Composition

2 NO

Shape Of Screw Head

cross pozidriv No 1 || slotted flat Ã˜ 4 mm || slotted flat Ã˜ 5.5 mm

Contacts Material

silver alloy (Ag/Ni)

[Ui] Rated Insulation Voltage

600 V 3)EN 60947-1

Contacts Usage

standard contacts

Electrical Durability

1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Mounting Of Block

front mounting

Mechanical Durability

10000000 cycles

Operating Force

5 N NO changing electrical state

Product Or Component Type

contact block

Vibration Resistance

5 gn 2-500 Hz)IEC 60068-2-6

[Uimp] Rated Impulse Withstand Voltage

6 kV EN 60947-1

Device Presentation

basic element

Ambient Air Temperature For Operation

-40-70Â°C

Electrical Composition Code

C2 3 ) || C4 2 ) || C6 2 ) || C8 1 ) || C10 2 ) || C13 3 ) || M2 2 ) || M4 2 ) || M8 2 )

Tightening Torque

0.8-1.2 N.m EN 60947-1

Positive Opening

without

Ip Degree Of Protection

IP20 IEC 60529

Contact Block Type

double

[Ith] Conventional Free Air Thermal Current

10 A EN/IEC 60947-5-1

[Ie] Rated Operational Current

3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN/IEC 60947-5-1

Contact Operation

slow-break

Device Short Name

ZBE

Short-Circuit Protection

10 A cartridge fuse gG EN/IEC 60947-5-1

Operating Travel

2.6 mm NO changing electrical state) || 4.3 mm total travel)

Includes Mounting Block

Mounting Block Included

Compatible Operator

Push Button

DC Contact Rating

0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V

Compatible with Series

ZB4, ZB5

Terminal Connection Type

Screw Clamp Terminals

AC Contact Rating

1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V

Switch Action

Momentary

Description

Contact Block, Contact Form 2NO, Contact Rating 10A @ 600V AC, For Use With Chrome, Plastic Operators (ZB4 or ZB5 Operators), Action Momentary, 22 mm, Application Operator, NEMA Contact Rating Designation A600/Q600, Color Black, Terminal Connection Screw/Clamp, Standards CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C8201-1, JIS C8201-5-1, UL 508
