- MFR #
- ZB4BZ1026P
- Zoro #
- G0196308
- UPC #
- 785901686767
- Country of Origin
- France

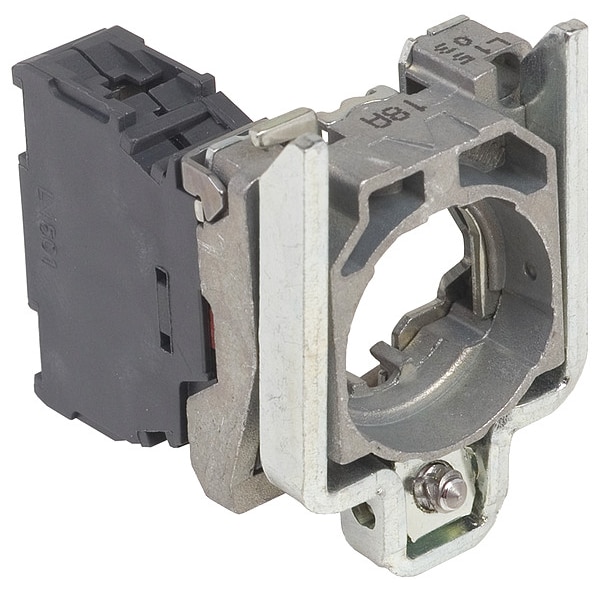

- Item
- Contact Block
- Contact Rating
- @ 250 V AC
- Application
- General Purpose
- Contact Form
- 1NC
- Color
- Black
- For Use With
- Flat Surface of Enclosure Type 4, 4X, 12 and 13
- Safety Rating
- CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
- Terminal Connection
- Screw Clamp
- NEMA Contact Rating Designation
- A600/Q600
- Standards
- CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
- Terminal Connection Type
- Screw Clamp Terminals
- Compatible with Series
- ZB4
- Includes Mounting Block
- Mounting Block Included
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- AC Contact Rating
- 1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
- Switch Action
- Momentary
- Compatible Operator
- Push Button
- Electrical Reliability
- λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
- Positive Opening
- with EN/IEC 60947-5-1 appendix K
- Contacts Type And Composition
- 1 NC
- Terminals Description Iso N°1
- (11-12)NC
- Contact Block Type
- single
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
- Contacts Material
- gold flashed (Ag/Ni/Au) contacts
- Operating Travel
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Electrical Durability
1000000 cycles, AC-15, 1 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 1.5 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.15 A 110 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C
- Short-Circuit Protection
- 4 A cartridge fuse gG EN/IEC 60947-5-1
- [Ith] Conventional Free Air Thermal Current
- 10 A EN/IEC 60947-5-1
- Rated Operational Current
- 3 A 240 V, AC-15, A300 IEC 60947-5-1; 6 A 120 V, AC-15, A300 IEC 60947-5-1; 0.1 A 250 V, DC-13, R300 IEC 60947-5-1; 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV EN 60947-1
- Contacts Usage
- standard contacts
- Fixing Collar Material
- zamak
- Ambient Air Temperature For Operation
- -25-70°C
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end EN 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN 60947-1
- Product Or Component Type
- complete body/contact assembly
- Device Composition
- contact block || fixing collar
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- [Ui] Rated Insulation Voltage
- 250 V 3)EN 60947-1
- Mechanical Durability
- 5000000 cycles
- Ip Degree Of Protection
- IP20 IEC 60529
- Operating Torque
- 0.05 N.m NO changing electrical state
- Device Short Name
- ZB4
- Product Certifications
- GL || UL || BV || CSA || DNV || LROS (Lloyds register of shipping)
- Head Type
- standard
- Rated Insulation Voltage
- 250 V 3)IEC 60947-1
- Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Ambient Air Temperature For Storage
- -40-70°C
- Contact Operation
- slow-break
- Protective Treatment
- TH
- Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
