  15. Contact Block, Clear, 1NC, 30 mm

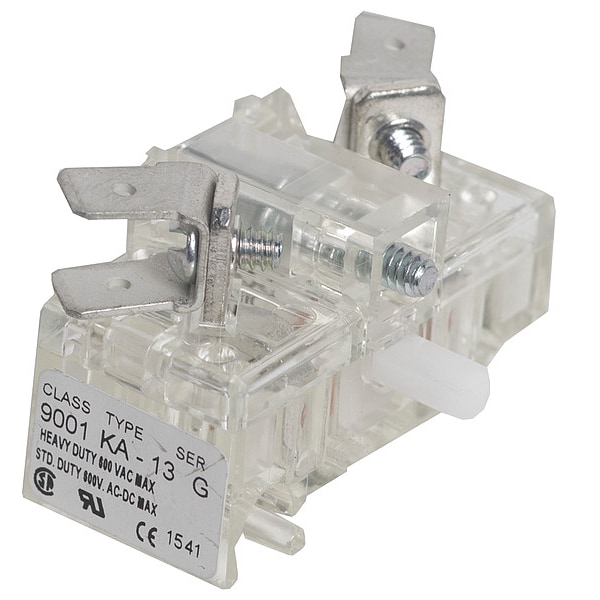

Schneider Electric Contact Block, Clear, 1NC, 30 mm 9001KA13 - main

Contact Block, Clear, 1NC, 30 mm

  • Mfr # 9001KA13

  • Zoro # G3546786

product price: $38.55
/ea

Key Features

Contact Rating
10A @ 600V AC
Size
30 mm
Application
Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment
Contact Form
1NC
Color
Clear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KA13
Zoro #
G3546786
UPC #
785901732426
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Connection Size
30 mm

Details

Item
Contact Block
Contact Rating
10A @ 600V AC
Application
Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment
Contact Form
1NC
Color
Clear
NEMA Contact Rating Designation
A600/Q600
Terminal Connection
Quick-Connect
Safety Rating
CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
Standards
UL 508
Vibration Resistance
7 gn 2-500 Hz)IEC 60068-2-6
[Ui] Rated Insulation Voltage
250 V 3)IEC 60947-1
Positive Opening
with IEC 60947-5-1
Rated Breaking Capacity
3 kA 240 V AC-15, 720 VA || 6 kA 120 V AC-15, 720 VA || 1.2 kA 600 V AC-15, 720 VA || 1.5 kA 480 V AC-15, 720 VA || 0.1 kA 600 V DC-13 || 0.27 kA 250 V DC-13 || 0.55 kA 125 V DC-13
Contact Operation
positive opening
[Ith] Conventional Free Air Thermal Current
10 A
Product Certifications
NEMA || UL 508
[Uimp] Rated Impulse Withstand Voltage
2.5 kV IEC 60947-1
Connections - Terminals
Faston connector, quick-connect terminal strips
Product Or Component Type
contact block
Contacts Type And Composition
1 NC
Device Short Name
9001K
Shock Resistance
50 gn IEC 60068-2-27
[Us] Rated Supply Voltage
0 to 600 V
Ambient Air Temperature For Operation
-25-70°C
Ambient Air Temperature For Storage
-40-70°C
[Icm] Rated Short-Circuit Making Capacity
12 kA 600 V AC-15, 7200 VA || 15 kA 480 V AC-15, 7200 VA || 30 kA 240 V AC-15, 7200 VA || 60 kA 120 V AC-15, 7200 VA || 0.1 kA 600 V DC-13, 7200 VA || 0.27 kA 250 V DC-13, 7200 VA || 0.55 kA 125 V DC-13
Electrical Shock Protection Class
class II IEC 61140
Protective Treatment
TC
Ip Degree Of Protection
IP20 IEC 60529
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600-Q600 NEMA || 0.55 A 125 V, DC-13, A600-Q600 NEMA
Short-Circuit Protection
10 A cartridge fuse IEC 60947-5-1
Contacts Material
silver alloy contacts
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Terminal Connection Type
Faston Connector
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Compatible Operator
Push Button
Compatible with Series
9001K, 9001SK
Switch Action
Momentary

Description

Contact Block, Contact Form 1NC, Contact Rating 10A @ 600V AC, 30 mm, Application Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment, NEMA Contact Rating Designation A600/Q600, Color Clear, Terminal Connection Quick-Connect, Standards UL 508, Safety Rating CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C 4520, JIS C 852, UL 508
