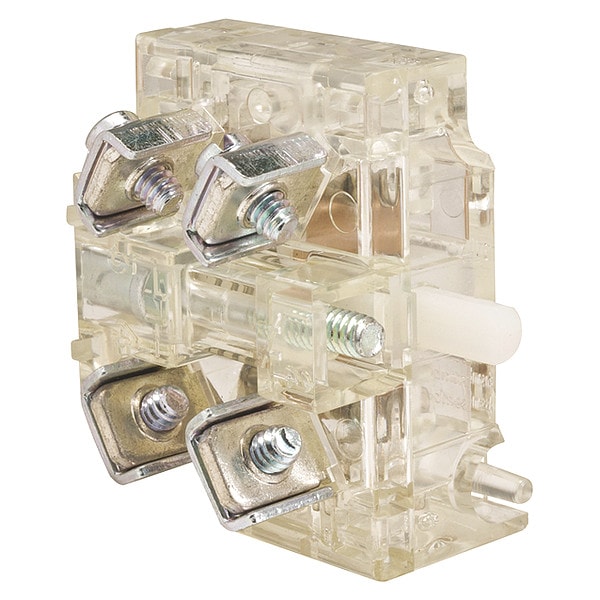

Schneider Electric Contact Block, Clear, SPDT, 30 mm 9001KA1G - main

Contact Block, Clear, SPDT, 30 mm

  • Mfr # 9001KA1G

  • Zoro # G3548378

product price: $45.65
/ea

Key Features

Contact Rating
10A @ 600V AC
Size
30 mm
Application
Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment
Contact Form
SPDT
Color
Clear
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001KA1G
Zoro #
G3548378
UPC #
785901028789
Country of Origin
Mexico

Dimensions

Size
30 mm
Connection Size
30 mm
Manufacturer Warranty Length
18 mo

Details

Item
Contact Block
Contact Rating
10A @ 600V AC
Application
Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment
Contact Form
SPDT
Color
Clear
Safety Rating
CE, CSA LR 25490 class 3211 03, UL Listed E42259 CCN NKCR
Standards
CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508
NEMA Contact Rating Designation
A600/Q600
Contacts Type And Composition
1 C/O
[Us] Rated Supply Voltage
0 to 600 V
Contact Operation
standard
Short-Circuit Protection
10 A without fingersafe
Device Short Name
K
Product Certifications
UL listed file E42259 CCN NKCR || CSA LR 25490 class 3211 03 || CE
Product Or Component Type
contact block
Connections - Terminals
screw terminals for lug
Contacts Material
silver alloy contacts
Compatible Operator
Push Button
Terminal Connection Type
Screw Terminals
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Compatible with Series
9001K, 9001SK
Switch Action
Momentary

Description

Contact Block, Contact Form SPDT, Contact Rating 10A @ 600V AC, 30 mm, Application Automotive, Crane and Hoist, Industrial Applications, Machine Tool, Material Handling, Metallurgy, Petrochemical, Wastewater Treatment, NEMA Contact Rating Designation A600/Q600, Color Clear, Standards CSA C22.2 No.14, EN, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, JIS C4520, JIS C852, UL 508, Safety Rating CE, CSA LR 25490 class 3211 03, UL Listed E42259 CCN NKCR

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
