- Item

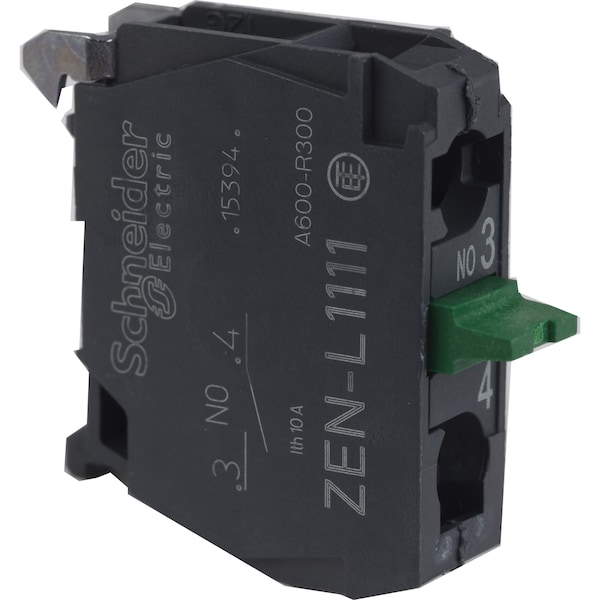

- Contact Blocks
- Contact Form
- 1NO
- Color
- Black
- Standards
- CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, IEC 60068-2-6, IP20 IEC 60529, JIS C8201-1, JIS C8201-5-1, REACH, RoHS, UL 508
- Ip Degree of Protection
- IP20 IEC 60529
- Shock Resistance
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Protective Treatment
- TH
- Ambient Air Temperature For Operation
- -40-70°C
- Vibration Resistance
- 5 gn 12-500 Hz)IEC 60068-2-6
- Product Destination
- for XB5 Ø 22 mm control and signalling units, for XAPS control station
- Contacts Material
- silver alloy (Ag/Ni)
- Electrical Durability
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
- Device Short Name
- ZENL
- Electrical Composition Code
- SR1 3 ), SR2 2 ), MR1 2 )
- Mechanical Durability
- 10000000 cycles
- Maximum Resistance Across Terminals
- 25 MOhm
- Product or Component Type
- contact block
- Ambient Air Temperature For Storage
- -40-70°C
- Contact Operation
- slow-break
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- Operating Force
- 2.3 N NO changing electrical state
- Mounting of Block
- rear mounting
- Operating Torque
- 0.05 N.m NO changing electrical state
- [Ie] Rated Operational Current
- 3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Contacts Type And Composition
- 1 NO
- Operating Travel
- 2.6 mm NO changing electrical state), 4.3 mm total travel)
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA IEC 60947-5-4
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Positive Opening
- without
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Shape of Screw Head
- cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Short-Circuit Protection
- 10 A cartridge fuse gG IEC 60947-5-1
- Additional Information
- mounting on integrated plate in the box
- Range of Product
- Harmony XAL, Harmony XAPS
- Mounting Of Block
- rear mounting
- Ip Degree Of Protection
- IP20 IEC 60529
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
- Product Or Component Type
- contact block
- Includes Mounting Block
- Mounting Block Included
- Terminal Connection Type
- Screw Clamp Terminals
- DC Contact Rating
- 0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
- AC Contact Rating
- 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
- Compatible Operator
- Push Button, Selector Switch
- Switch Action
- Momentary/Late Break
- Compatible with Series
- XAL, XAPS
