  8. Harmony XB4, Body Contact, 1 NC, Metal, Fixing Collar, Push-In Terminals

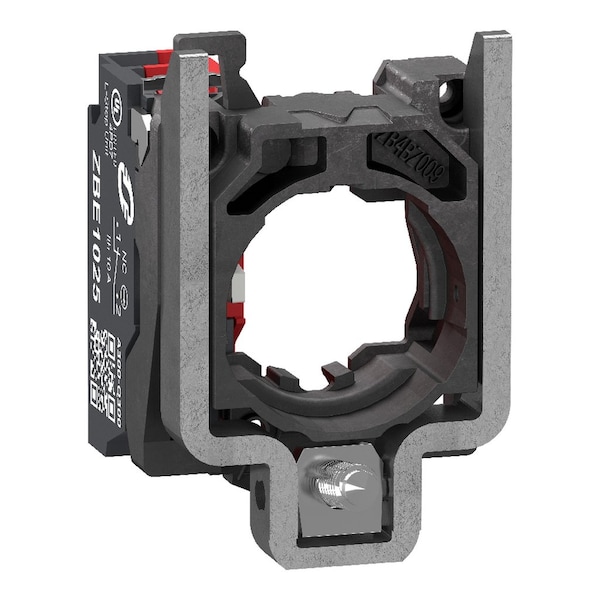

Schneider Electric Harmony XB4, Body Contact, 1 NC, Metal, Fixing Collar, Push-In Terminals ZB4BZ1025 - main

Harmony XB4, Body Contact, 1 NC, Metal, Fixing Collar, Push-In Terminals

  • Mfr # ZB4BZ1025

  • Zoro # G4531502

product price:  $23.19
/ea

Key Features

Contact Rating
10A @ 600V AC
Size
22 mm
Action
Momentary
Application
Operator
Contact Form
1NC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4BZ1025
Zoro #
G4531502
UPC #
785901665236
Country of Origin
France

Dimensions

Size
22 mm
Cad Overall Width
30 mm
Cad Overall Depth
37 mm
Cad Overall Height
47 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo

Details

Item
Contact Block
Contact Rating
10A @ 600V AC
Action
Momentary
Application
Operator
Contact Form
1NC
Color
Black
Terminal Connection
Spring Clamp
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
For Use With
Schneider 22mm Push Buttons
NEMA Contact Rating Designation
A600/Q600
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Switch Action
Momentary
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Voltage
600VAC
Mechanical Durability
5000000 cycles
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Contacts Type And Composition
1 NC
Electrical Durability
10000000 cycles
Contacts Usage
standard contacts
Ambient Air Temperature For Operation
-40-70°C
Positive Opening
with EN/IEC 60947-5-1 appendix K
Device Composition
body || fixing collar
Connections - Terminals
spring clamp terminals
Operating Travel
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Fixing Collar Material
zamak
Device Short Name
ZB4
Contacts Material
silver alloy (Ag/Ni)
Operating Force
2 N NC changing electrical state
Ambient Air Temperature For Storage
-40-70°C
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Device Presentation
basic sub-assemblies
Contact Operation
slow-break
Product Or Component Type
complete body/contact assembly
Ip Degree Of Protection
IP20 IEC 60529
Head Type
standard
Contact Block Type
single
Protective Treatment
TH
Product Certifications
GL || BV || DNV || CSA || LROS (Lloyds register of shipping) || UL
Terminals Description Iso N°1
(11-12)NC
Terminals Description Iso N°1
(11-12)NC
Includes Mounting Block
Mounting Block Included
Compatible with Series
ZB4
Compatible Operator
Push Button
Terminal Connection Type
Push-In

Description

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It features 1 normally closed (NC) contact. It is compatible with Harmony XB4 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This metal product weighs 49g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
