Shop SCHNEIDER ELECTRIC

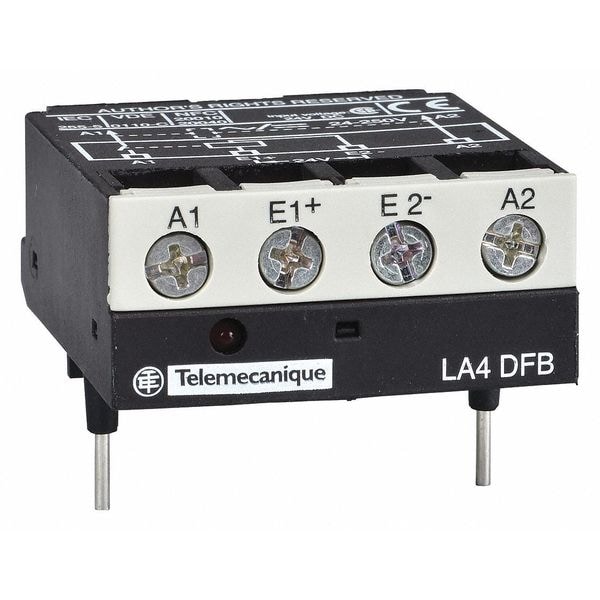

Contactor+Relay Interface Module 250V

  • Mfr # LA4DFB
  • Zoro # G0569600
product price:
$
68.19
/ea

Key Features

Height
12 mm
Standards
IEC 60255-5
Control Circuit Voltage Limits
17 to 30 V at 20°C DC
[Ui] Rated Insulation Voltage
250 V - control circuit IEC 60947-5-1
Device Short Name
LA4D
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LA4DFB
Zoro #
G0569600
UPC #
785901260905
Country of Origin
Tunisia

Dimensions

Height
12 mm

Details

Item
Contactor+Relay Interface Module 250V
Standards
IEC 60255-5
Control Circuit Voltage Limits
17 to 30 V at 20°C DC
[Ui] Rated Insulation Voltage
250 V - control circuit IEC 60947-5-1
Device Short Name
LA4D
Voltage State 0 Guaranteed
< 2.4 V
Connections - Terminals
control circuit connector 1 1-2.5 mm²flexible with cable end || control circuit connector 1 1-2.5 mm²flexible without cable end || control circuit connector 1 1-2.5 mm²solid with cable end || control circuit connector 1 1-2.5 mm²solid without cable end || control circuit connector 2 1-2.5 mm²flexible with cable end || control circuit connector 2 1-2.5 mm²flexible without cable end || control circuit connector 2 1-2.5 mm²solid with cable end || control circuit connector 2 1-2.5 mm²solid without cable end
[Ith] Conventional Free Air Thermal Current
8 A 50°C
Poles Description
3P
Protection Type
built-in by diode
Immunity To Microbreaks
4 ms
Product Certifications
UL || CSA
[Ue] Rated Operational Voltage
control circuit 24 to 250 V AC
Local Signalling
LED indicator
Product Compatibility
LC1D09 to D150
Ambient Air Temperature For Operation
-25-55°C
Technology Type
electromechanical
Electrical Durability
10 Mcycles 240 V
Current State 0 Guaranteed
<= 2 mA
Ambient Air Temperature For Storage
-40-80°C
Mounting Mode
top mounted
Permissible Ambient Air Temperature Around The Device
-25-70°C
Range
TeSys
[Us] Rated Supply Voltage
24 V DC
Current Consumption
25 mA 20°C
Voltage State 1 Guaranteed
17 V
Heat Dissipation
0.6-0.6 W control circuit
Product Or Component Type
interface module
Ip Degree Of Protection
IP2X conforming to IEC 60529

Description

Contactor+Relay Interface Module 250V
