  15. ContrlStationEnclosur, 22mm, 3Hole, Plastic

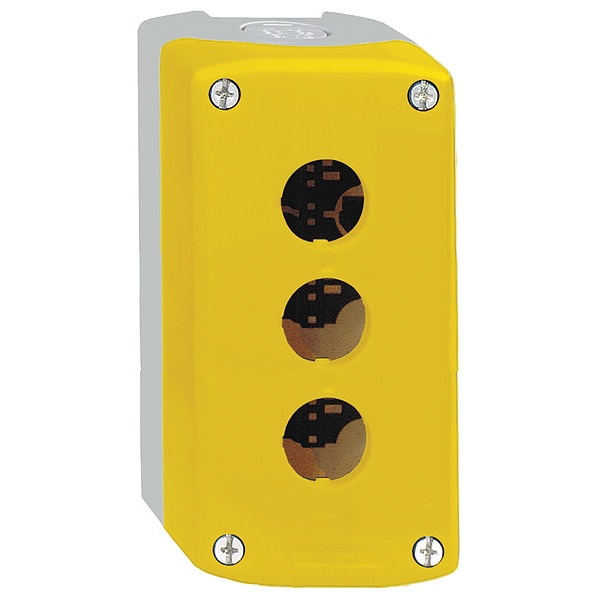

Schneider Electric ContrlStationEnclosur, 22mm, 3Hole, Plastic XALK03H7 - main

ContrlStationEnclosur, 22mm, 3Hole, Plastic

  • Mfr # XALK03H7

  • Zoro # G3547452

product price: $37.99
/ea

Key Features

Number of Columns
1
Material
Polycarbonate
Dimensions
5.35 in H x 2.68 in W x 2.09 in D
NEMA Rating
13, 4X
Cable Entry
1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALK03H7
Zoro #
G3547452
UPC #
606480502729
Country of Origin
Czechia

Dimensions

Dimensions
5.35 in H x 2.68 in W x 2.09 in D
Height
5.35 in
Width
2.68 in
Depth
2.09 in
Overall Depth
2 1/16 in
Overall Width
2 11/16 in
Compatible Conduit Size - Maximum
14 mm
Panel Cutout Diameter
22 mm
Overall Height
5 3/8 in

Details

Item
Control Station Enclosure
Number of Columns
1
Material
Polycarbonate
NEMA Rating
13, 4X
Cable Entry
1 knock-out for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Color
Yellow
Standards
IP66 IEC 60529, IP67 Rating, IP69 Rating, IP69K Rating
Mounting Style
Front Mounting, Rear Mounting
Type
Control Station
For Use With
22 mm Control and Signaling Units
Group Of Product
UL-CSA yellow
Ik Degree Of Protection
IK03 EN 50102
Resistance To High Pressure Washer
7000000 Pa 55°C 0.1 m
Nema Degree Of Protection
NEMA 13 || NEMA 4X
Overvoltage Category
class II IEC 60536
Product Destination
for XB5 Ø 22 mm control and signalling units
Ip Degree Of Protection
IP66 IEC 60529 || IP67 || IP69 || IP69K
Control Station Application
emergency stop function || emergency switching off function
Product Or Component Type
empty control station
Main Group
1 cut-out
Colour Of Cover
yellow RAL 1021)
Number Of Vertical Rows
1
Ambient Air Temperature For Storage
-40-70°C
Protective Treatment
TH
Mounting Of Block
front mounting || rear mounting
Device Short Name
XALK
Number Of Cut-Out
3 cut-outs
Number Of Horizontal Rows
1
Colour Of Base Of Enclosure
light grey RAL 7035)
Ambient Air Temperature For Operation
-40-70°C
Electrical Composition Code
SR1 || MF1 || SF1 || MR1
Product Certifications
CSA || UL
NEMA Enclosure Rating
13, 4X
Compatible with Series
XB5

Description

Control Station Enclosure, Number of Columns 1, Number of Holes 3, NEMA Rating 13, 4X, Dimensions 5.35 in H x 2.68 in W x 2.09 in D, Material Polycarbonate, Height 5.35 in, Width 2.68 in, Depth 2.09 in, Color Yellow, Type Control Station, For Use With 22 mm Control and Signaling Units, Mounting Style Front Mounting, Rear Mounting, Standards IP66 IEC 60529, IP67 Rating, IP69 Rating, IP69K Rating
