- Item
- Control Relay
- Auxiliary Contact Form
- 2NC/2NO
- Maximum Voltage Rating
- 690V AC
- Standards
- EN/IEC 60947-4-1 || GB/T 14048.4 || UL 60947-4-1 || CSA C22.2 No 60947-4-1 || JIS C8201-4-1
- Contactor Application
- control circuit
- Control Circuit Voltage Limits
- drop-out 0.2 to 0.75 Uc 50°C) || operational 0.8 to 1.15 Uc 50°C)
- [Uc] Control Circuit Voltage
- 200 V AC 50/60 Hz
- Non Overlap Distance
- 0.5 mm
- Utilisation Category
- DC-13 || AC-15
- Connections - Terminals
screw clamp terminals 1 1.5-4 mm²solid || screw clamp terminals 2 1.5-4 mm²solid || screw clamp terminals 1 0.75-4 mm²flexible with cable end || screw clamp terminals 2 0.75-4 mm²flexible without cable end || screw clamp terminals 1 0.34-1.5 mm²flexible with cable end || screw clamp terminals 2 0.34-1.5 mm²flexible without cable end
- Range
- TeSys
- Product Name
- TeSys CAK
- Mechanical Durability
- 10 Mcycles
- Protective Treatment
- TC IEC 60068
- Flame Retardance
- V1 conforming to UL 94 || requirement 2 conforming to NF F 16-101 || requirement 2 conforming to NF F 16-102
- Irms Rated Making Capacity
- 110 A IEC 60947
- Immunity To Microbreaks
- 2 ms
- Ambient Air Temperature For Operation
- -25-50°C
- Control Circuit Type
- AC 50/60 Hz
- Maximum Operating Rate
- 10000 cyc/h
- Associated Fuse Rating
- 10 A gG IEC 60947 || 10 A gG VDE 0660
- Minimum Switching Voltage
- 17 V
- Inrush Power In Va
- 30-30 VA 20°C)
- Product Or Component Type

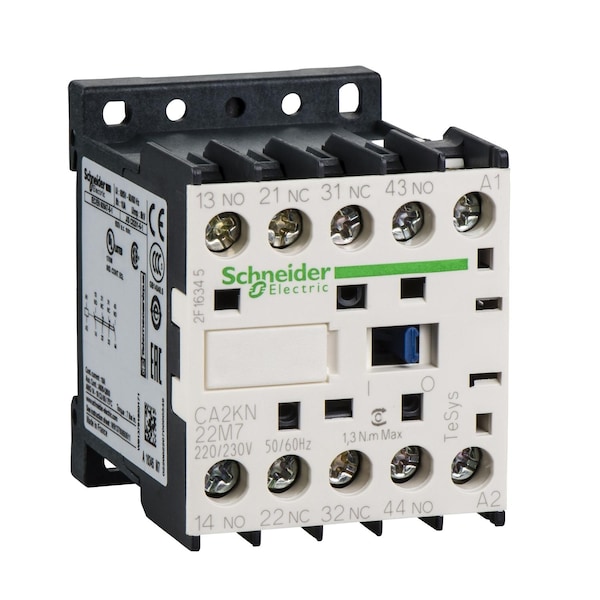

- control relay
- Operating Time
- 10 to 20 ms coil de-energisation and NO opening || 10 to 20 ms coil energisation and NO closing || 15 to 25 ms coil de-energisation and NC closing || 5 to 15 ms coil energisation and NC opening
- Mechanical Robustness
- vibrations contactor open2 Gn, 5 to 300 Hz IEC 60068-2-6 || vibrations contactor closed4 Gn, 5 to 300 Hz IEC 60068-2-6 || shocks contactor open10 Gn for 11 ms IEC 60068-2-27 || shocks contactor closed15 Gn for 11 ms IEC 60068-2-27
- Tightening Torque
- 1.3 N.m screw clamp terminals flat Ø 6 mm || 1.3 N.m screw clamp terminals Philips No 2 6 mm || 1.3 N.m screw clamp terminals pozidriv No 2
- Minimum Switching Current
- 5 mA
- Insulation Resistance
- > 10 MOhm
- Heat Dissipation
- 1.3-1.3 W
- Operating Altitude
- 6561.68 ft (2000 m) without derating
- Hold-In Power Consumption In Va
- 4.5-4.5 VA 20°C)
- Ambient Air Temperature For Storage
- -50-80°C
- Product Certifications
- CB Scheme || CCC || UL || CSA || EAC || CE || UKCA
- Device Short Name
- CA2K
- Pole Contact Composition
- 2 NO + 2 NC
- IP Rating
- IP2X
- Conventional Free Air Thermal Current
- 10 A 50°C
- Mounting Style
- rail || plate
- Rated Operational Voltage
- <= 690 V <= 400 Hz
- Rated Insulation Voltage
- 690 V IEC 60947 || 750 V VDE 0110 group C || 690 V BS 5424 || 600 V CSA C22.2 No 14
