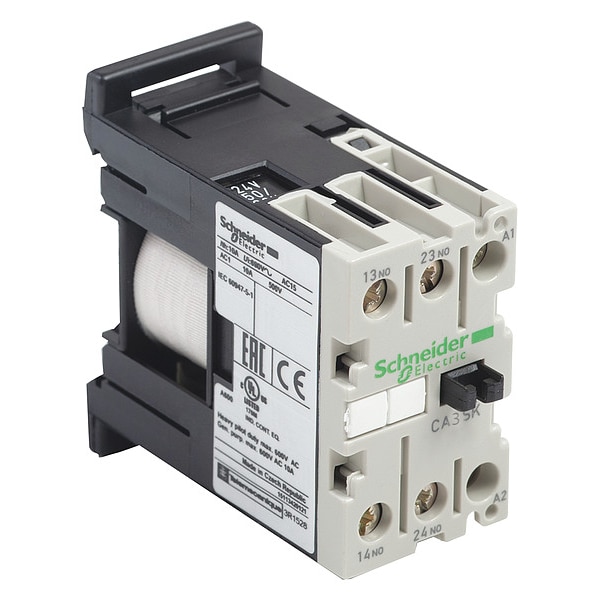

Control relay, TeSys SK, 2NO, <= 690V, 110V AC coil

Control relay, TeSys SK, 2NO, <= 690V, 110V AC coil

Mfr # CA2SK20F7
Zoro # G3157555

$68.75

Key Features

Standards

EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1

Mounting Support

rail, plate

Range

TeSys

[Uc] Control Circuit Voltage

110 V AC 50/60 Hz

Pole Contact Composition

2 NO

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

CA2SK20F7

Zoro #

G3157555

UPC #

785901180180

Country of Origin

Czechia

Dimensions

Height

56 mm

Depth

55.5 mm

Width

27 mm

Details

Item

Sk Control Relays

Standards

EN/IEC 60947-5-1, UL 60947-5-1, CSA C22.2 No 60947-5-1

Mounting Support

rail, plate

Range

TeSys

[Uc] Control Circuit Voltage

110 V AC 50/60 Hz

Pole Contact Composition

2 NO

Control Circuit Type

AC 50/60 Hz

Associated Fuse Rating

10 A gL conforming to VDE 0660, 10 A gL conforming to IEC 60947

Operating Altitude

6561.68 ft (2000 m) without derating

[Ue] Rated Operational Voltage

<= 690 V <= 400 Hz

Contactor Application

control circuit

Utilisation Category

AC-15, DC-13

Protective Treatment

TC IEC 60068

Operating Time

6...8 ms coil de-energisation and NO opening, 7...14 ms coil energisation and NO closing

Ambient Air Temperature For Storage

-50-70°C

Device Short Name

CA2SK

Connections - Terminals

screw clamp terminals 1 1.5-6 mm²solid, screw clamp terminals 2 1.5-4 mm²solid, screw clamp terminals 1 0.5-6 mm²flexible without cable end, screw clamp terminals 1 0.35-6 mm²flexible with cable end, screw clamp terminals 2 0.35-1.5 mm²flexible with cable end, screw clamp terminals 2 0.35-2.5 mm²flexible without cable end

[Ui] Rated Insulation Voltage

690 V IEC 60947, 690 V VDE 0110 group C, 690 V BS 5424, 690 V UL 508, 690 V CSA C22.2 No 14

Tightening Torque

0.8 N.m screw clamp terminals pozidriv No 1

Maximum Operating Rate

1200 cyc/h

Control Circuit Voltage Limits

drop-out: 0.2...0.75 Uc (at <50°C), operational: 0.85...1.1 Uc (at <50°C)

[Ith] Conventional Free Air Thermal Current

10 A (at 55°C)

Heat Dissipation

1.4-1.4 W

Ambient Air Temperature For Operation

-20-50°C

Ip Degree of Protection

IP2X

Mechanical Durability

10 Mcycles

Inrush Power In Va

16-16 VA (at 20°C)

Product Name

TeSys CASK

Product or Component Type

control relay

Hold-In Power Consumption In Va

4.2-4.2 VA (at 20°C)

Product Certifications

CB Scheme || cULus || EAC || CE || UKCA

Ip Degree Of Protection

IP2X

Product Or Component Type

control relay

Description

Sk Control Relays
