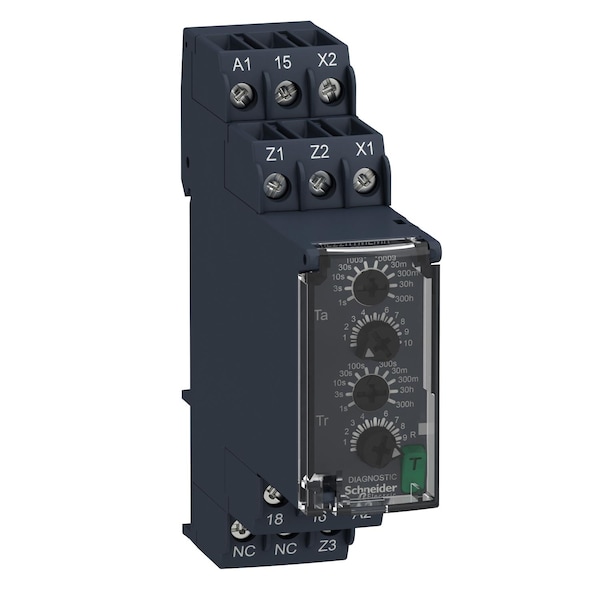

- Standards
- IEC 61812-1, UL 508
- Item
- Asymmetrical Recycler
- Power Consumption In Va
- 3-3 VA 240 V AC
- [Uimp] Rated Impulse Withstand Voltage
- 5 kV 1.2-50µs IEC 60664-1
- Minimum Pulse Duration
- 100 ms with load in parallel, 30 ms
- Number of Functions
- 4
- Pollution Degree
- 3 IEC 60664-1
- Immunity To Microbreaks
- 10 ms
- Connections - Terminals
screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end, screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
- Insulation Resistance
- 100 MOhm 500 V DC IEC 60664-1
- Housing Material
- self-extinguishing
- Mounting Position
- any position
- Reset Time
- 120 ms on de-energisation
- Voltage Drift
- +/- 0.2 %/V
- Creepage Distance
- 4 kV/3 IEC 60664-1
- Input Voltage
- <= 2.4 V
- Repeat Accuracy
- +/- 0.5 % IEC 61812-1
- Dielectric Strength
- 2.5 kV 1 mA/1 minute 50 Hz between relay output and power supply basic insulation IEC 61812-1
- Vibration Resistance
- 20 m/s² 10-150 Hz)IEC 60068-2-6
- Relative Humidity
- 95-95 % 25-55°C
- Temperature Drift
- +/- 0.05 %/°C
- Mounting Support
- 35 mm DIN rail conforming to IEC 60715
- Electrical Durability
- 100000 cycles, 8 A at 250 V, AC-1, 100000 cycles, 2 A at 24 V, DC-1
- Range of Product
- Harmony Timer Relays
- Electromagnetic Compatibility
fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4, surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5, surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5, electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2, electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2, radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3, conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6, fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4, immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11
- Voltage Range
- 0.85...1.1 Us
- Mechanical Durability
- 10000000 cycles
- Maximum Switching Current
- 8A
- Maximum Delay Response
- 100 ms
- Supply Frequency
- 50...60 Hz +/- 5 %
- Setting Accuracy of Time Delay
- +/- 10 % of full scale 25°C IEC 61812-1
- Contacts Type And Composition
- 1 C/O timed contact, cadmium free
- Shock Resistance
- 15 gn not operating 11 ms IEC 60068-2-27, 5 gn in operation 11 ms IEC 60068-2-27
- Switching Capacity In Va
- 2000 VA
- Time Delay Type
- asymmetrical flashing
- Ambient Air Temperature For Operation
- -20-60°C
- Tightening Torque
- 0.6-1 N.m IEC 60947-1
- Ambient Air Temperature For Storage
- -40-70°C
- Status Led
- Green LED backlight steady)dial pointer indication, Yellow LED steady)output relay energised, Yellow LED fast flashing)timing in progress and output relay de-energised, Yellow LED slow flashing)timing in progress and output relay energised
- Product or Component Type
- multifunction relay
- Minimum Switching Current
- 10 mA 5 V DC
- Maximum Switching Voltage
- 250 V AC
- Control Type
- rotary knob, diagnostic button, potentiometer external
- Overvoltage Category
- III IEC 60664-1
- Power Consumption In W
- 1.5 W 240 V DC
- Device Short Name
- RE22
- Nominal Output Current
- 8A
- Time Delay Range
- 0.05...1 s, 30...300 min, 30...300 h, 30...300 s, 3...30 h, 0.3...3 s, 3...30 min, 3...30 s, 10...100 s, 1...10 s
- Discrete Output Type
- relay
- Ip Degree of Protection
- IP40 housing: conforming to IEC 60529, IP50 front face: conforming to IEC 60529, IP20 terminals: conforming to IEC 60529
- [Us] Rated Supply Voltage
- 24...240 V AC/DC 50/60 Hz
- Setting Accuracy Of Time Delay
- +/- 10 % of full scale 25°C IEC 61812-1
- Ip Degree Of Protection
- housing IP40 IEC 60529 || front face IP50 IEC 60529 || terminals IP20 IEC 60529
- Product Or Component Type
- multifunction relay
- Product Certifications
- EAC || UL || GL || CSA || RCM || CCC || CE
