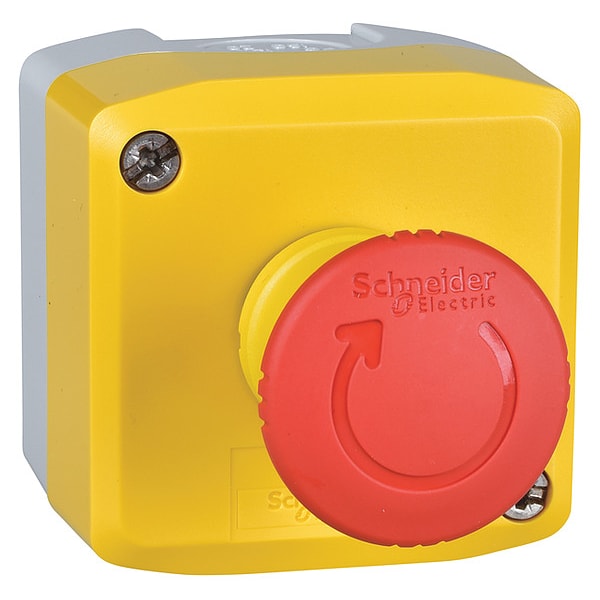

Schneider Electric Control Station, Dead-End, PushButton, Red XALACS1 - main

Control Station, Dead-End, PushButton, Red

  • Mfr # XALACS1

  • Zoro # G0195976

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Mushroom Head
Contact Form
1NC
Number of Operators
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALACS1
Zoro #
G0195976
UPC #
785901554394
Country of Origin
Mexico

Dimensions

Size
22 mm
Overall Depth
2.68 in
Overall Width
2.68 in
Panel Cutout Diameter
22 mm
Overall Height
3.58 in
Hub Size - Maximum
9/16 in

Details

Item
Control Station
Legend
Emergency Stop
Number of Pilot Lights
0
Type of Operator
Mushroom Head
Contact Form
1NC
Number of Operators
1
NEMA Rating
13
Hub Style
Dead-End
Series
Harmony
Housing Color
light grey RAL 7035)
Action
Maintained
Operator Color
Red
IP Rating
IP66
Number of Speeds
1
Lamp Module Voltage
Module Not Included
Enclosure Material
Plastic
Enclosure Color
Light Gray/Yellow
Application
emergency switching off function
Enclosure Base Cover
Light Gray RAL 7035)
NEMA Degree Of Protection
NEMA 13
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Cover Color
Yellow RAL 1021)
Product Destination
For XB5 22 mm control and signalling units
IP Degree Of Protection
IP66
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Operator Configuration
Mushroom Head Push Button
Product Type
Control Station
NEMA Enclosure Rating
13
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Maintained Action Release
Twist
Resistance Properties
Chemical Resistant
Operating Temperature - Maximum
158 Degrees F

Description

Control Station, Number of Operators 1, Number of Pilot Lights 0, Size 22 mm, Legend Emergency Stop, Type of Operator Mushroom Head, Action Maintained, Operator Color Red, Contact Form 1NC, NEMA Rating 13, IP Rating IP66, Enclosure Material Plastic, Enclosure Color Light Gray/Yellow, Lamp Module Voltage Module Not Included
