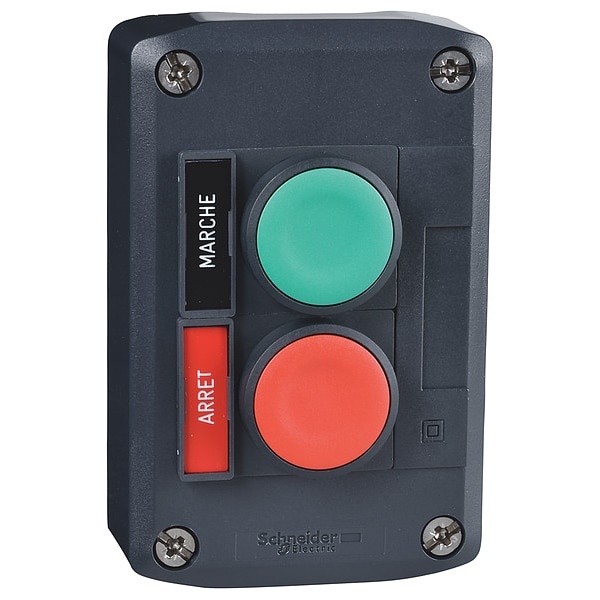

Schneider Electric ControlStation, Dead-End, 2Buttons, Grn/Red XALACS2 - main

ControlStation, Dead-End, 2Buttons, Grn/Red

  • Mfr # XALACS2

  • Zoro # G3456827

product price: $68.15
/ea

Key Features

Contact Form
1NO/1NC
Basic Material
polycarbonate
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XALACS2
Zoro #
G3456827
UPC #
785901554912
Country of Origin
Mexico

Dimensions

Size
22 mm
Overall Height
4.17 in
Overall Width
2.68 in
Overall Depth
2.44 in
Panel Cutout Diameter
22 mm
Hub Size - Maximum
9/16 in

Details

Item
Control Station
Contact Form
1NO/1NC
Basic Material
polycarbonate
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button
Number of Operators
2
Series
Harmony
NEMA Rating
13, 4X
Hub Style
Dead-End
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C4520, UL 508
Contact Rating
0.1A @ 600 V DC, 0.27A @ 250 V DC, 0.55A @ 125 V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120 V AC
Housing Color
light grey RAL 7035)
Action
Momentary/Momentary
Operator Color
Green, Red
Terminal Connection
screw clamp terminal
IP Rating
IP66
Number of Speeds
1
Voltage
600 V
Enclosure Color
Dark Gray/Light Gray
Cable Entry
2 knock-outs for cable entry 14-14 mm || 2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
Lamp Module Voltage
Module Not Included
Enclosure Material
Plastic
Application
Start-Stop function
Resistance Properties
Chemical Resistant
NEMA Enclosure Rating
13, 4X
Operating Temperature - Maximum
158 Degrees F
Operator Configuration
(2) Push Buttons
Hazardous Location Specification
Not Rated
Product Type
Control Station
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
Operating Temperature - Minimum
-13 Degrees F

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 22 mm, Legend Start/Stop, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Green, Red, Contact Form 1NO/1NC, NEMA Rating 13, 4X, Contact Rating 0.1A @ 600 V DC, 0.27A @ 250 V DC, 0.55A @ 125 V DC, 1.2A @ 600 V AC, 3A @ 240V AC, 6A @ 120 V AC, IP Rating IP66, Enclosure Material Plastic, Enclosure Color Dark Gray/Light Gray
