Shop SCHNEIDER ELECTRIC

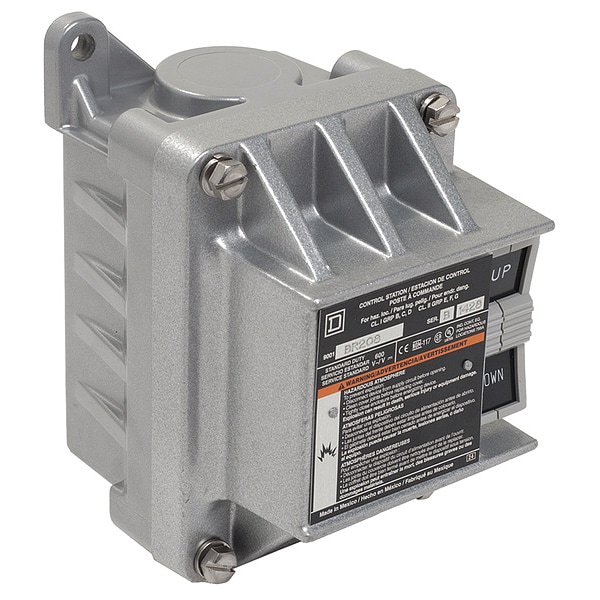

ControlStation, Feed-Thru, 2Buttons, Gray

  • Mfr # 9001BR208
  • Zoro # G3457362
product price:
$
345.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Basic Material
cast zinc
Legend
Forward/Reverse
Number of Pilot Lights
0
Type of Operator
Push Button
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001BR208
Zoro #
G3457362
UPC #
785901856542
Country of Origin
Korea, Republic of

Dimensions

Size
0.31 in
Height
6.36 in
Depth
4.35 in
Width
3.95 in
Overall Width
3.95 in
Overall Height
6.36 in
Hub Size - Maximum
1/2 in
Manufacturer Warranty Length
18 mo
Overall Depth
4.35 in

Details

Item
Control Station
Number of Gangs
1
Basic Material
cast zinc
Legend
Forward/Reverse
Number of Pilot Lights
0
Type of Operator
Push Button
Contact Form
2NO
Number of Operators
2
NEMA Rating
7, 9
Hub Style
Feed-Thru
Series
9001
Contact Rating
5 @ 600V AC
Standards
CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
For Use With
indoor
Housing Color
grey
Action
Momentary/Momentary
Hub
1/2 in NPT
Application
two functions
Mounting Style
Surface
Lamp Module Voltage
Module Not Included
Number of Speeds
1
Enclosure Material
Aluminum
Enclosure Color
Gray
Operator Color
(2) Gray
Mounting
Wall
NEMA Enclosure Rating
7, 9
Operator Configuration
(2) Push Buttons
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
Operating Temperature - Minimum
-13 Degrees F
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
Product Type
Control Station
Operating Temperature - Maximum
158 Degrees F

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 0.31 in, Legend Forward/Reverse, Type of Operator Push Button, Action Momentary/Momentary, Operator Color (2) Gray, Contact Form 2NO, NEMA Rating 7, 9, Contact Rating 5 @ 600V AC, IP Rating Not Applicable, Mounting Wall, Hub 1/2 in NPT, Height 6.36 in, Width 3.95 in, Depth 4.35 in, Enclosure Material Aluminum, Enclosure Color Gray, Standards CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
