Shop SCHNEIDER ELECTRIC

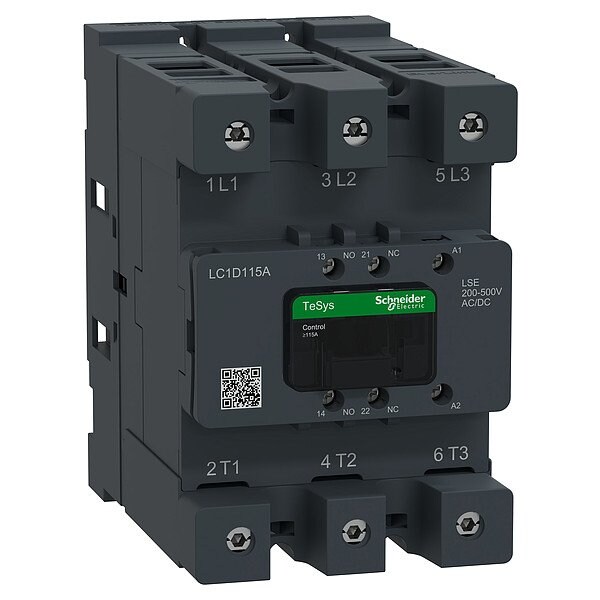

CTR Deca 115A 3P 200-500V ACDC EvLk

  • Mfr # LC1D115ALSE

  • Zoro # G122841304

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Overall Width
3.82 in
Includes Auxiliary Contacts
Yes
Mounting Style
Plate
NEMA Enclosure Rating
No Enclosure
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
LC1D115ALSE
Zoro #
G122841304
UPC #
-
Country of Origin
Multiple
Includes Auxiliary Contacts
Yes
Mounting Style
Plate
NEMA Enclosure Rating
No Enclosure
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
Maximum Operating Temperature
140 Degrees F
Terminal Connection Type
Screw Terminals
Item
IEC Contactor
Number of Poles
3
Phase
Three
Minimum Operating Temperature
-40 Degrees F
Maximum Voltage Rating
440V
Number of Auxillary Contacts
2
Electrical Operating Durability
1,000,000, 500,000
Reversing Capability
Non-Reversing
Series
Tesys Deca
Mechanical Operating Durability
8,000,000
Contactor Style
IEC
Embedded Surge Suppressor
Yes
Coil Voltage
200-500V AC/DC
Number of Normally Open Main Contacts
3
Full Load Current - Inductive
115 A
Full Load Current - Resistive
Not Rated
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Frequency
50/60 Hz
Auxiliary Contact Form
1NO/1NC

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 200-500V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.82 in, Terminal Connection Type Screw Terminals, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
