Shop SCHNEIDER ELECTRIC

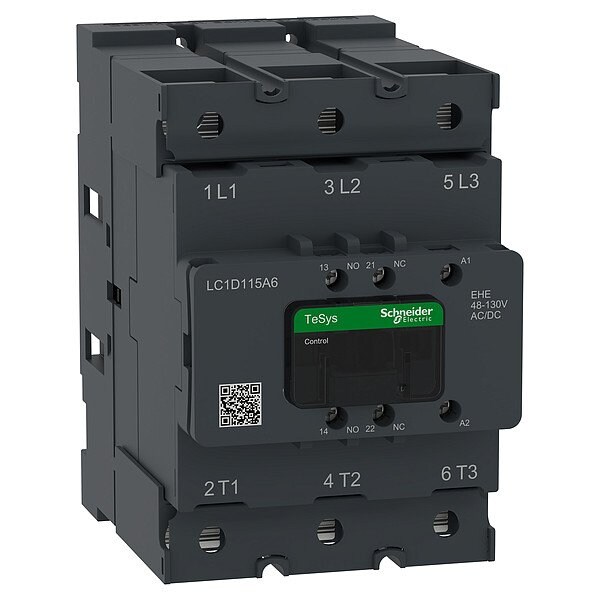

CTR Deca 115A 3P 48-130V ACDC Lug

  • Mfr # LC1D115A6EHE

  • Zoro # G422823550

product price:
$
723.99
/ea
Free Shipping & Returns

Key Features

Number of Auxillary Contacts
2
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Overall Depth
6.1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LC1D115A6EHE
Zoro #
G422823550
UPC #
-
Country of Origin
Multiple

Dimensions

Overall Depth
6.1 in
Overall Width
3.9 in
Overall Height
5.98 in

Details

Number of Auxillary Contacts
2
Standards
CB Scheme, CCC, CE, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, cULus, EN/IEC 60947-4-1, EN/IEC 60947-5-1, EU-RO-MR by DNV-GL, GB/T 14048.4, GB/T 14048.5, JIS C8201-4-1, JIS C8201-5-1, UKCA, UL 60947-4-1, UL 60947-5-1
NEMA Enclosure Rating
No Enclosure
Auxiliary Contact Form
1NO/1NC
Contactor Style
IEC
Item
IEC Contactor
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Frequency
50/60 Hz
Mechanical Operating Durability
8,000,000
Embedded Surge Suppressor
Yes
Full Load Current - Inductive
115 A
Coil Voltage
48-130V AC/DC
Full Load Current - Resistive
Not Rated
Series
Tesys Deca
Number of Normally Open Main Contacts
3
Phase
Three
Terminal Connection Type
Box Lugs
Mounting Style
Plate
Includes Auxiliary Contacts
Yes
Number of Poles
3
Resistance Properties
Fire Resistant, Insulation Resistant, Shock Resistant, Vibration Resistant
Electrical Operating Durability
1,000,000, 500,000
Reversing Capability
Non-Reversing
Maximum Voltage Rating
440V

Description

IEC Contactor, Auxiliary Contact Form 1NO/1NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 48-130V AC/DC, Number of Poles 3, Full Load Current - Inductive 115 A, Full Load Current - Resistive Not Rated, Reversing Capability Non-Reversing, Overall Height 5.98 in, Overall Width 3.9 in, Terminal Connection Type Box Lugs, Frame Size Not Applicable, Mounting Style Plate, Series Tesys Deca, Number of Auxillary Contacts 2, Contactor Style IEC, Phase Three
