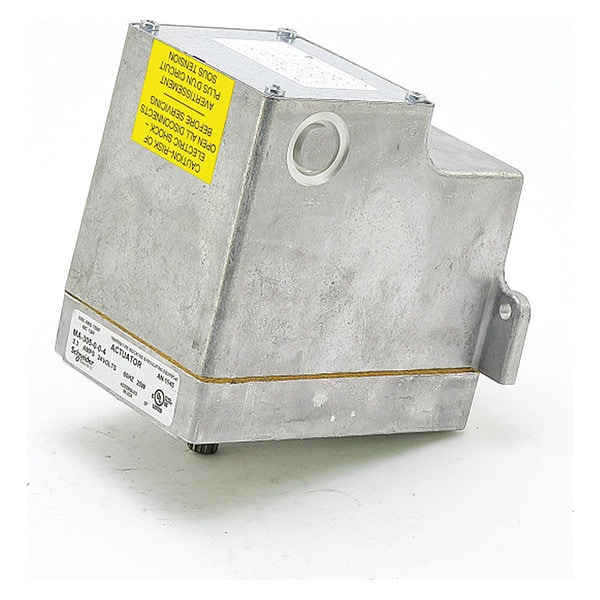

Damper Electric Actuator, 24V, 2-Position
Mfr # MA-305
Zoro # G2085699
product price:Â $1,070.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
Includes
Spring Return
Input Voltage
24V
Standards
cULus, UL 873
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MA-305
- Zoro #
- G2085699
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 5 3/4 in
- Overall Depth
- 5 5/8 in
- Overall Width
- 5 3/8 in
Details
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- Includes
- Spring Return
- Input Voltage
- 24V
- Standards
- cULus, UL 873
- Product Type
- Actuator
- Valve Application
- Damper and Valve
- Contact Form
- SPST
- Housing Material
- Aluminum
- Time to Open
- 20 sec
- Rated Torque
- 16 lb-in
- Electrical Connection Type
- Screw Terminals
- Shaft Rotation
- CW
- Power Consumption
- 56 VA
- Spring Return
- Spring Return
- Maximum Operating Temperature
- 136 Degrees F
- Power Rating
- 25W
- NEMA Rating
- 4
- Minimum Operating Temperature
- 40 Degrees F
Description
Actuator, Valve Application Damper and Valve, Rated Torque 16 lb-in, Input Voltage 24V, Contact Form SPST, Electrical Connection Type Screw Terminals, NEMA Rating 4, Spring Return Spring Return, Shaft Rotation CW, Maximum Operating Temperature 136 Degrees F, Minimum Operating Temperature 40 Degrees F, Overall Width 5 3/8 in, Application Dampers, Valves
