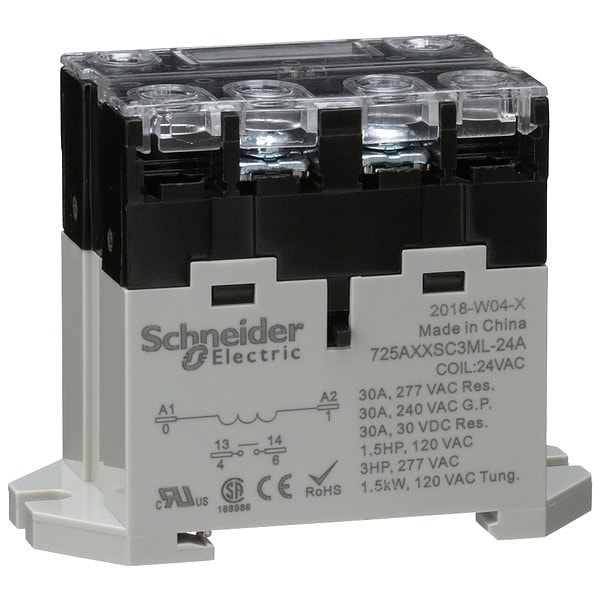

DIN Rail & Top Flange, Enclosed Power Relay, 30 A, 4 Pins, Screw

  • Mfr # 725AXXSC3ML-24A

  • Zoro # G1159776

product price:  $33.45
/ea

Key Features

Mounting Style
DIN Rail & Top Flange
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V AC
Current Rating
30 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
725AXXSC3ML-24A
Zoro #
G1159776
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.09"H, 2.67"W, 1.30"D
Overall Height - Relay
2.09 in
Body Height
1.3 in
Overall Depth
2.12 in
Body Depth
1.64 in
Body Width
2.67 in
Width
1.37 in (34.9 mm)
Depth
2.12 in (53.9 mm)

Details

Item
Enclosed Power Relay
Mounting Style
DIN Rail & Top Flange
Electrical Connection
Screw
Number of Pins
4
Coil Voltage
24V AC
Current Rating
30 A
Contact Form
SPST-NO
Contact Rating (AC)
30 A @ 240/277V
Contact Rating (DC)
30 A @ 28/30V
Number of Poles
1
Features
3hp @ 277V AC, LED & Button
Contact Amp Rating (Resistive)
30A @ 277VAC/30VDC
Power Consumption - Relay
2.5 VA
Hz
50/60
Contact Material
Silver Alloy
Standards
CE Certified, CSA Certified, IEC 60947-1, UL60947-4-1A
Coil Rating
2.5VA, 1.9W
Coil Resistance
275 ohm
Dielectric Strength
4,000V AC Between Coil and Contact
Motor Rated
Yes
Operating Current
30 A at 240V AC (General Purpose), 30 A at 240V AC (Resistive Load), 30 A at 277V AC (Resistive Load), 30 A at 28V DC (Resistive Load), 30 A at 30V DC (Resistive Load)
Maximum Operating Temperature
131 Degrees F
Horsepower @ 120V AC
1 1/2 hp
Series
Harmony(TM) 725 Power Series
IP Rating
IP20
Weight
4.23 oz
Frequency
50/60 Hz
Minimum Operating Temperature
-4 Degrees F
Input Voltage
20.4 to 26.4V AC
Minimum Switching Current
100 mA
Push-To-Test Method
Test Button
Status Indicator
LED Indicator
Horsepower @ 240V AC
3 hp
Power Consumption
2.5 VA
Electrical Operating Durability
100,000
Mechanical Operating Durability
5,000,000
Maximum Switching Voltage
240V, 277V
Response Time
30 msec
Average Coil Consumption
2.50 VA
Product Range
Harmony Electromechanical Relays
Tightening Torque
10.6...15 lb.in; 1.2...1.7 N.m
Series name
Power
Rated Power in HP
3 hp 277 V AC; 1.5 hp 120 V AC
Nominal input voltage
20.4...26.4 V AC 50/60 Hz
Contact Composition
1 NO
Ambient Air Temperature for Storage
-67 to 212°F (-55 to 100°C)
ambient temperature range - operational
-4 to 131°F (-20 to 55°C)
Rated power in W
1.5 kW 120 V tungsten
Product Certifications
UL; CSA; CE
Connections - terminals
Screw coil terminal M3.5; Screw contact terminal M4
Type
Power

Description

Enclosed Power Relay, Coil Voltage 24V AC, Contact Form SPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Number of Pins 4, Status Indicator LED Indicator, Contact Rating (AC) 30 A @ 240/277V, Contact Rating (DC) 30 A @ 28/30V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style DIN Rail & Top Flange, Push-To-Test Method Test Button, Body Depth 1.64 in, Body Height 1.3 in, Body Width 2.67 in, Coil Resistance 275 ohm, Contact Material Silver Alloy
