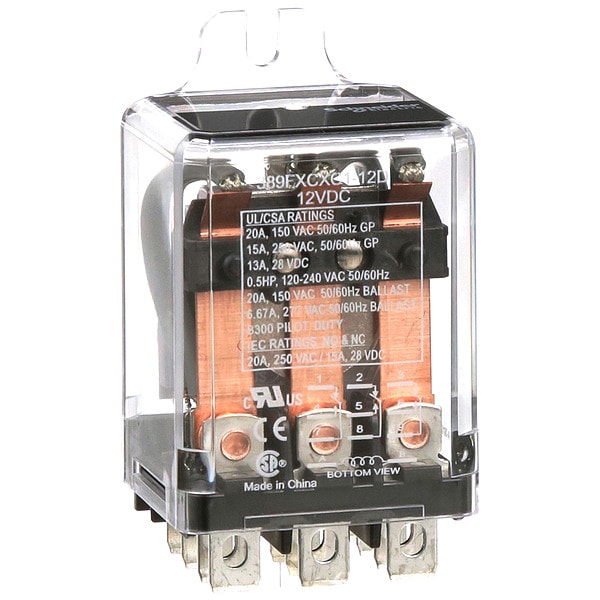

Flange Mount, Enclosed Power Relay, Octal, 20 A, 11 Pins, Quick Connect

  • Mfr # 389FXCXC1-12D

  • Zoro # G1510853

CAD Available
product price:  $42.35
/ea

Key Features

CAD Drawing
Mounting Style
Flange
Electrical Connection
Quick-Connect
Base Shape
Octal
Number of Pins
11
Coil Voltage
12V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
389FXCXC1-12D
Zoro #
G1510853
UPC #
-
Country of Origin
China

Dimensions

Overall Height - Relay
2.9 in
Body Depth
1.64 in
Body Height
1.07 in
Body Width
1.6 in
Overall Depth
2.9 in

Details

Item
Enclosed Power Relay
Mounting Style
Flange
Electrical Connection
Quick-Connect
Base Shape
Octal
Number of Pins
11
Coil Voltage
12V DC
Current Rating
20 A
Contact Form
3PDT
Contact Rating (AC)
15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V
Contact Rating (DC)
13 A @ 28V, 15 A @ 28V
Features
Flag Indicator
Standards
CE Certified, CSA Certified, cURus
Contact Material
Silver Alloy
Contact Amp Rating (Resistive)
20A @ 150VAC
Number of Poles
3
Hz
50/60
Power Consumption - Relay
3.5 W
Motor Rated
Yes
Status Indicator
Mechanical Flag
Mechanical Operating Durability
5,000,000
Operating Current
13 A at 28V DC (Resistive Load), 15 A at 250V AC (Resistive Load), 15 A at 28V DC (NO/NC), 20 A at 150V AC (Ballast), 20 A at 150V AC (Resistive Load), 20 A at 250V AC (NO/NC), 6.67 A at 277V AC (Ballast)
Horsepower @ 120V AC
1/2 hp
Coil Resistance
100 ohm
Weight
2.96 oz
Maximum Switching Voltage
300V AC
Electrical Operating Durability
100,000
Power Consumption
1.3 W, 2 VA
Horsepower @ 240V AC
1/2 hp
Minimum Operating Temperature
-22 Degrees F
Frequency
50/60 Hz
Response Time
20 msec
Input Voltage
12V DC
Minimum Switching Current
100 mA
Series
389F Power Series
Dielectric Strength
1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Maximum Operating Temperature
131 Degrees F
CAD Available
Yes
Ambient Air Temperature for Storage
-22 to 185°F (-30 to 85°C)
Power consumption in W
1.3 W DC
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Product Certifications
cURus; CSA; CE
Motor Power HP
0.5 hp 120/240 V AC 50/60 Hz
Voltage Range
0.8...1.1 Uc DC
Power consumption in VA
2 VA AC
Ambient Air Temperature for Operation
-22 to 131°F (-30 to 55°C)
Contact Composition
3 NO + 3 NC
Connections Terminals
Quick
Push-To-Test Method
No Test Button
Type
Power

Description

Enclosed Power Relay, Base Shape Octal, Coil Voltage 12V DC, Contact Form 3PDT, Current Rating 20 A, Electrical Connection Quick-Connect, Number of Pins 11, Status Indicator Mechanical Flag, Contact Rating (AC) 15 A @ 250V, 20 A @ 150/250V, 6.67 A @ 277V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1/2 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Flange, Body Depth 1.64 in, Body Height 1.07 in, Body Width 1.6 in, Coil Resistance 100 ohm, Contact Material Silver Alloy
