  15. Disconnect Switch, Fusible, 3P, Three Phase, Indoor, Rotary Handle, PBT

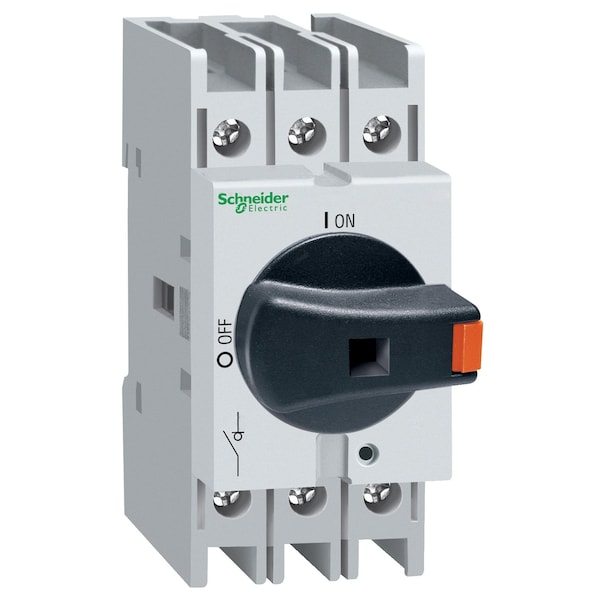

Schneider Electric Disconnect Switch, Fusible, 3P, Three Phase, Indoor, Rotary Handle, PBT VLS3P016R1 - main

CAD Drawings

Download CAD Files

Disconnect Switch, Fusible, 3P, Three Phase, Indoor, Rotary Handle, PBT

  • Mfr # VLS3P016R1

  • Zoro # G0858740

CAD Available
product price: $41.99
/ea

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
3P
Current Rating
16 A
Phase
Three
Environment
Indoor
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLS3P016R1
Zoro #
G0858740
UPC #
-
Country of Origin
Italy

Dimensions

Width
1.42 in
Height
2.95 in
Depth
3.07 in

Details

Item
Disconnect Switch
Protection Method
Fusible
Contact Form
3P
Current Rating
16 A
Phase
Three
Environment
Indoor
HP
10 HP @ 400 V
Voltage
690 V
Handle Color
Gray
Handle Type
Rotary Handle
Housing Material
PBT
Standards
CSA C22.2 No 14, IEC 60947-3, UL 508
Amps
16 A
Number of Poles
3
Use
Body Switch Disconnector
Includes
Rotary Handle
Duty
Intermittent
Fuse Kit (Class R)
Fusible
IP Rating
20
Color
Gray
Device Composition
handle || switch
Network Type
AC
Rotary Handle Mounting Style
direct
Performance Level
high performance
Rated Conditional Short-Circuit Current
50 kA 400 V 16 A gG
Device Short Name
VLS3P
Contacts Type And Composition
3 NO
Rated Operational Power In W
7.5 kW 400 V AC-23A) || 7.5 kW 500 V AC-23A) || 11 kW 690 V AC-23A)
Ip Degree Of Protection
IP20 conforming to IEC 60529
Rotary Handle Padlocking
1 padlock 4-4 mm
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Ambient Air Temperature For Operation
-25-55°C
Range
TeSys
Fixing Mode
by clips back
Product Name
TeSys VARIO LS
Product Certifications
cULus || GL
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Making Capacity
24 A 690 V AC-21A || 48 A 690 V AC-22A || 160 A 690 V AC-23A
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Mechanical Durability
100000 cycles
Compatibility Code
VLS
Fire Resistance
960°C IEC 60695-2-11
Breaking Capacity
24 A 690 V AC-21A) || 48 A 690 V AC-22A) || 128 A 690 V AC-23A)
Mounting Support
back DIN rail
Intermittent Duty Class
class 120 - 60 %
Suitability For Isolation
yes
Marking
0 - 1
Network Frequency
50/60 Hz
Product Or Component Type
switch body
Electrical Durability
100000 cycles AC-21A
Poles Description
3P
IEC Terminal Connection
Power circuit screw clamp terminals 0.02 in² (10 mm²) solid; Power circuit screw clamp terminals 0.02 in² (16 mm²) flexible - without cable end
Iec Rated Operational Power in W
7.5 kW 400 V AC-23A; 7.5 kW 500 V AC-23A; 11 kW 690 V AC-23A)
Rated Operational Voltage
690 V AC 50/60 Hz
Conventional Free Air Thermal Current
16 A (at 131°F (55°C))
Rated Operational Current
16 A Ue: 600 V UL 508; 16 A AC-21A Ue: 400 V; 16 A AC-21A Ue: 500 V; 16 A AC-21A Ue: 690 V; 16 A AC-22A Ue: 400 V; 16 A AC-22A Ue: 500 V; 16 A AC-22A Ue: 690 V; 16 A AC-23A Ue: 400 V; 16 A AC-23A Ue: 500 V; 16 A AC-23A Ue: 690 V
Short Circuit Current Rating
Fuse RK5 30 A maximum: 5 kA at 600 V AC
UL Rated Operational Voltage
600 V AC 50/60 Hz UL 508
UL Maxium Horsepower Ratings
5 hp 200/208 V AC; 5 hp 240 V AC; 10 hp 480 V AC; 10 hp 600 V AC; 1 hp 120 V AC; 2 hp 240 V AC
CAD Available
Yes

Description

The SCHNEIDER ELECTRIC - VLS3P016R1 is a safety disconnect switch, an essential industrial electrical device that is designed for the interruption of electric current flow to a specific circuit or equipment. Primarily used by professionals in various sectors such as manufacturing, construction, and energy production for maintenance, repair, and emergency stoppage purposes. This device is used with the intention of enhancing workplace safety, potentially helping prevent accidental startups or electrical shocks during servicing operations.

  • Ambient Air Temperature For Operation: The switch is rated for operation within an air temperature range of -25-55°C.
  • Breaking Capacity: It has varying breaking capacities at different voltages as per manufacturer's specifications.
  • Connections - Terminals: Accommodates different types and sizes of terminal connections indicating its versatility with wire or cable diameters it can securely fasten.
  • Contact Form & Composition: With 3 normally open contacts, it controls the electrical flow effectively.
  • Current Rating: Is rated to carry a maximum amount of 16 A electrical current as per manufacturer's specifications.
  • Device Composition: Includes components like handle and switch for easy operation
  • Duty & Durability: Rated for intermittent operation with mechanical durability up to 100000 cycles under specified conditions according to manufacturer's testing
