  15. Disconnect Switch, Intermittent Duty, 690 V, 3P, Indoor, Rotary Handle, PBT

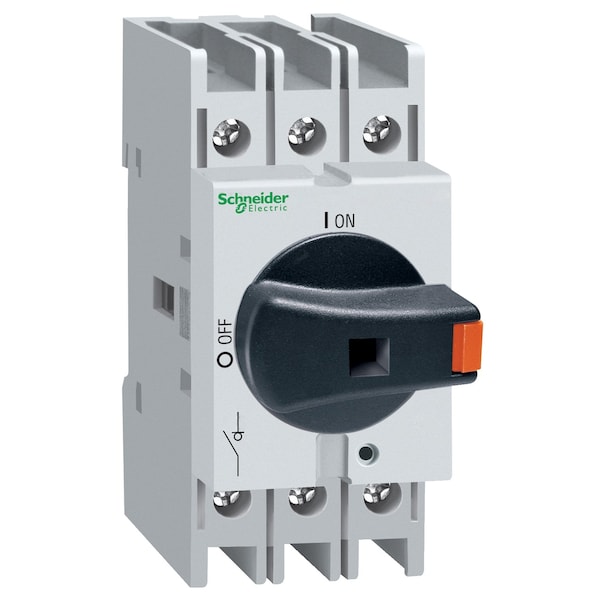

Schneider Electric Disconnect Switch, Intermittent Duty, 690 V, 3P, Indoor, Rotary Handle, PBT VLS3P063R1 - main

CAD Drawings

Download CAD Files

Disconnect Switch, Intermittent Duty, 690 V, 3P, Indoor, Rotary Handle, PBT

  • Mfr # VLS3P063R1

  • Zoro # G0859011

CAD Available
product price: $76.49
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Contact Form
3P
Current Rating
63 A
Phase
Three
Environment
Indoor
HP
29.5 HP @ 400 V, 29.5 HP @ 500 V, 29.5 HP @ 690 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VLS3P063R1
Zoro #
G0859011
UPC #
-
Country of Origin
Italy

Dimensions

Depth
3.07 in
Height
2.95 in
Width
2.76 in

Details

Item
Disconnect Switch
Contact Form
3P
Current Rating
63 A
Phase
Three
Environment
Indoor
HP
29.5 HP @ 400 V, 29.5 HP @ 500 V, 29.5 HP @ 690 V
Voltage
690 V
Handle Color
Gray
Handle Type
Rotary Handle
Housing Material
PBT
Standards
CSA C22.2 No 4, IEC 60947-3, UL98
Amps
63 A
Number of Poles
3
Duty
Intermittent
IP Rating
20
Use
Body Switch Disconnector
Includes
Rotary Handle
Color
Gray
Contacts Type And Composition
3 NO
Device Composition
switch || handle
Breaking Capacity
120 A 690 V AC-22A) || 320 A 690 V AC-23A) || 94.5 A 690 V AC-21A)
Device Short Name
VLS3P
Rotary Handle Padlocking
1 padlock 4-4 mm
Intermittent Duty Class
class 120 - 60 %
Compatibility Code
VLS
Network Type
AC
Electrical Durability
15000 cycles AC-21
Poles Description
3P
Mechanical Durability
100000 cycles
Rated Operational Power In W
22 kW 400 V AC-23A) || 22 kW 500 V AC-23A) || 22 kW 690 V AC-23A)
Product Or Component Type
switch body
Ambient Air Temperature For Operation
-25-55°C
Mounting Support
back DIN rail
Rated Conditional Short-Circuit Current
50 kA 400 V 63 A gG
Fire Resistance
960°C IEC 60695-2-11
Network Frequency
50/60 Hz
Product Name
TeSys VARIO LS
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Rotary Handle Mounting Style
direct
Tightening Torque
power circuit 1.8-2 N.m screw clamp terminals
Fixing Mode
by clips back
Marking
0 - 1
Range
TeSys
Suitability For Isolation
yes
Ip Degree Of Protection
IP20 conforming to IEC 60529
Product Certifications
cULus || GL
Making Capacity
120 A 690 V AC-22A || 400 A 690 V AC-23A || 94.5 A 690 V AC-21A
Connections - Terminals
power circuit screw clamp terminals 10-10 mm² solid || power circuit screw clamp terminals 16-16 mm² flexible - without cable end
Performance Level
high performance
CAD Available
Yes

Description

The SCHNEIDER ELECTRIC - VLS3P063R1 is a Safety Disconnect Switch, an essential industrial electrical device used for interrupting electric current flow to specific circuits or equipment. Primarily utilized in sectors such as manufacturing, construction, and energy production, this device enhances workplace safety by preventing accidental startups or electrical shocks during servicing operations.

  • Ambient Air Temperature For Operation: The switch is rated for operation within a range of ambient air temperatures from -25 to 55°C.
  • Breaking Capacity: This refers to the maximum current that the switch is designed to interrupt at specified voltages.
  • Connections - Terminals: The switch accommodates various types and sizes of terminal connections indicating its compatibility with different wire or cable diameters.
  • Contact Form & Composition: With 3 normally open contacts (3 NO), it controls the electrical flow effectively.
  • Current Rating: It is designed for carrying an electrical current up to 63 amperes (A).
  • Mechanical Durability: Rated for up to 100000 operational cycles under normal usage conditions, as per manufacturer's specifications.
  • Housing Material & IP Rating: Constructed with PBT material for durability and rated IP20 for protection against dust intrusion and accidental contact according to International Protection Marking standards
