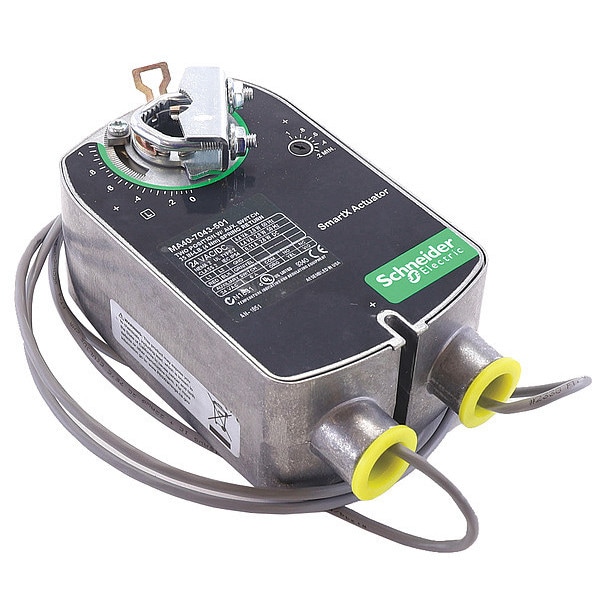

Electric Actuator, 24V, 35 lb.-in.
- Mfr # MA40-7043-501
- Zoro # G2085601
product price:Â
$
383.99
/ea
Free Shipping & Returns
Key Features
Fits Brand
Schneider Electric
Application
Dampers, Valves
Includes
Auxiliary Switch
Input Voltage
22V DC to 30V DC, 24V AC
Product Type
Actuator
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MA40-7043-501
- Zoro #
- G2085601
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Height
- 3 1/2 in
- Overall Depth
- 6 3/4 in
- Overall Width
- 4 in
Details
- Fits Brand
- Schneider Electric
- Application
- Dampers, Valves
- Item
- Actuator
- Includes
- Auxiliary Switch
- Input Voltage
- 22V DC to 30V DC, 24V AC
- Product Type
- Actuator
- Stroke Degree
- 95 +/- 5 Degrees
- Minimum Operating Temperature
- -22 Degrees F
- Valve Application
- Damper and Valve
- NEMA Rating
- 2
- Power Rating
- 2.9W
- Rated Torque
- 35 lb-in
- Full Load Current
- 0.1 A
- Maximum Operating Temperature
- 140 Degrees F
- Contact Form
- SPST
- Spring Return
- Spring Return
- Power Consumption
- 4.4 VA
- IP Rating
- IP54
- Shaft Rotation
- CW/CCW
Description
Actuator, Valve Application Damper and Valve, Rated Torque 35 lb-in, Input Voltage 22 to 30V DC, 24V AC, Contact Form SPST, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Shaft Rotation CW/CCW, Stroke Degree 95 +/- 5 Degrees , Mounting Type Direct Mount, Maximum Operating Temperature 140 Degrees F, Minimum Operating Temperature -22 Degrees F, Overall Width 4 in, Application Dampers, Valves
