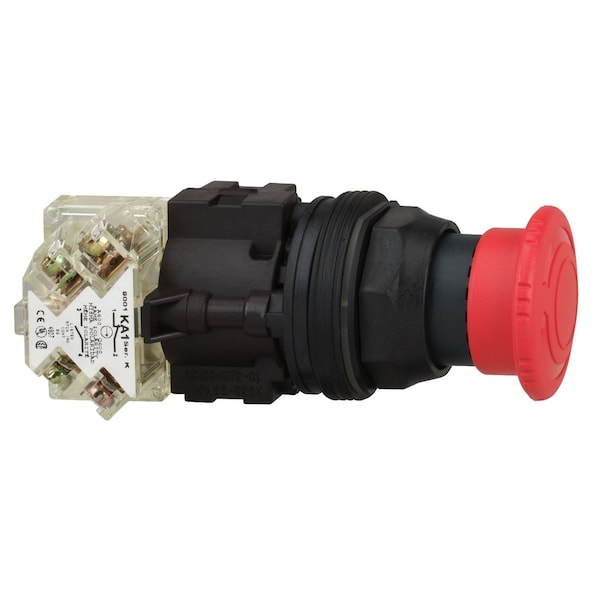

Emergency stop push button, Harmony 9001SK, plastic, mushroom 40mm, red, 30mm, 2 positions, turn to release, 2 C/O

Emergency Stop Push Button

Mushroom Head

Maintained / Momentary

Twist

Non-Illuminated

Red

Plastic

Screw Clamp

IEC 60204-1, for emergency stop devices if used with emergency stop legend plate type 9001KN, ISO 13850, for emergency stop devices if used with emergency stop legend plate type 9001KN, IEC 60947-5-1, IEC 60947-1, IEC 60947-5-4, IEC 60947-5-5, JIS C 4520, JIS C 852, UL 60947-5-5, CSA C22.2 No 14

turn to release

plastic

any position

Harmony 9001SK

2 positions

IP66 IEC 60529

TC

250 V 3)IEC 60947-1

3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA

12 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13

2 C/O

7 gn 2-500 Hz)IEC 60068-2-6

mushroom Ø 40 mm

silver alloy contacts

NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X

0.8-0.8 N.m IEC 60947-1

10 A cartridge fuse IEC 60947-5-1

round

class II IEC 61140

3 kA 240 V AC-15, 720 VA, 6 kA 120 V AC-15, 720 VA, 1.2 kA 600 V AC-15, 720 VA, 1.5 kA 480 V AC-15, 720 VA, 0.1 kA 600 V DC-13, 0.27 kA 250 V DC-13, 0.55 kA 125 V DC-13

screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1

50 gn IEC 60068-2-27

cross slotted

red

9001SK

-40-70°C

complete product

2.5 kV IEC 60947-1

-25-70°C

5000000 cycles

9001SK
