- Item

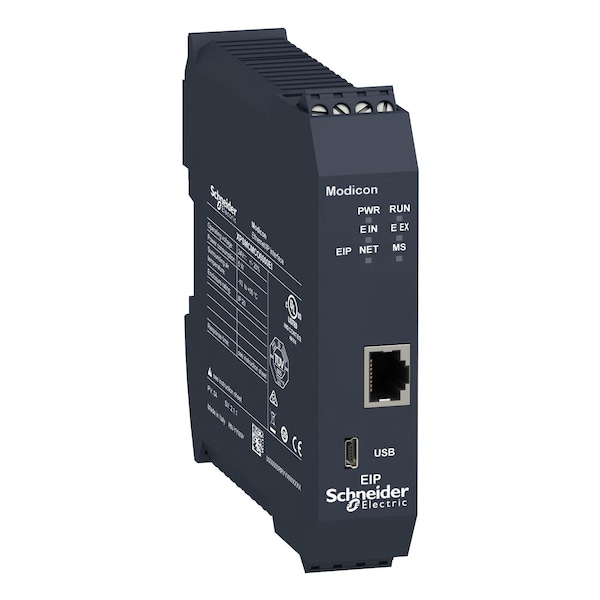

- Ethernet/IP diagnostic expansion module
- Ip Degree Of Protection
- IP20
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Number Of Port
- 1
- Quality Labels
- CE
- Cable Cross Section
0.2-1.5 mm² - AWG 24 to AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24 to AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23 to AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23 to AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23 to AWG 14 flexible with cable end, without bezel || 0.5-1.5 mm² - AWG 20 to AWG 16 flexible with cable end, with double bezel || 0.2-1 mm² - AWG 24 to AWG 18 solid without cable end || 0.2-2.5 mm² - AWG 24 to AWG 14 solid without cable end
- Pollution Degree
- 2
- Range Compatibility
- Preventa XPSMCM
- Maximum Cable Distance Between Devices
- 100 m
- [Us] Rated Supply Voltage
- 24 V - 20 to 20 % DC
- Operating Altitude
- 6561.68 ft (2000 m)
- Product Certifications
- cULus || RCM || TUV
- Vibration Resistance
- +/-0.35 mm 10-55 Hz)EN/IEC 61496-1
- Communication Port Protocol
- Ethernet TCP/IP
- Product Or Component Type
- non-safe communication module
- Connections - Terminals
- 2 captive screw clamp terminals, removable terminal block
- Transmission rate
- 10/100 Mbit/s
- Current Consumption
- 0.125 mA
- Relative Humidity
- 10-95 %
- Connector Type
- RJ45
- Electromagnetic Compatibility
electrostatic discharge immunity test 6 kV on contact) EN/IEC 61000-4-2 || electrostatic discharge immunity test 20 kV on air) EN/IEC 61000-4-2 || susceptibility to electromagnetic fields 10 V/m 80 to 1000 MHz) EN/IEC 61000-4-3 || susceptibility to electromagnetic fields 30 V/m 1.4 GHz to 2 GHz) EN/IEC 61000-4-3
- Power Dissipation In W
- 3 W
- Local Signalling
- LED green PWR power ON || LED green RUN operating || LED red E IN internal error || LED red E EX external error || LED green/red NET connection state || LED green/red STS communication status
- Insulation
- 250 V AC between power supply and housing EN/IEC 61800-5-1
- Overvoltage Category
- II
- Ambient Air Temperature For Storage
- -20-85°C
- Method Of Access
- server
- Ambient Air Temperature For Operation
- -10-55°C
- Shock Resistance
- 10 gn 16 ms) 1000 shocks on each axis EN/IEC 61496-1
- Device Short Name
- XPSMCM
- Service Life
- 20 year(s)
- Range of Product
- Modicon MCM
- Pvc Free
- Yes
