Item

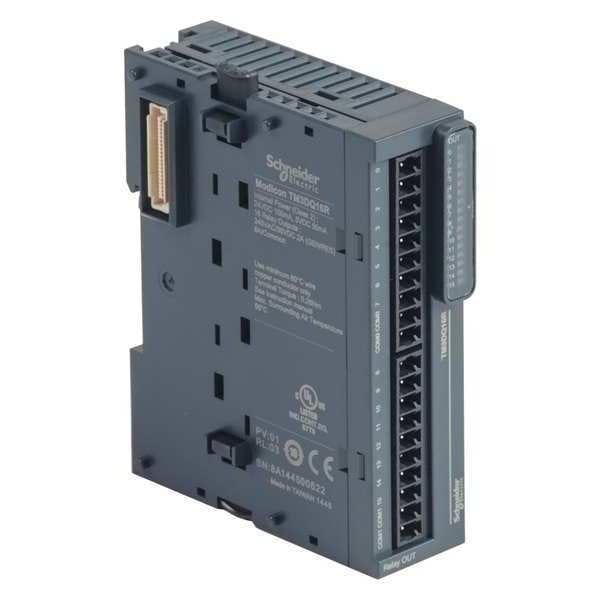

Discrete Output Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Plate or Panel with Fixing Kit
Product Type
Discrete Output Module
Standards
EN/IEC 61010-2-201 || EN/IEC 61131-2
Mechanical Durability
20000000 cycles
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Insulation
between output and internal logic 2300 V AC || between outputs 750 V AC || between output groups 1500 V AC
Discrete Output Number
16
Local Signalling
for output status 1 LED per channel (green)
Surge Withstand
1 kV I/O common mode EN/IEC 61000-4-5 DC
Storage Altitude
0-3000 m
Discrete Output Current
2000 mA relay output
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Current Consumption
0 mA 24 V DC via bus connector at state off) || 75 mA 24 V DC via bus connector at state on)
Product Certifications
cULus || CE || UKCA || RCM || EAC
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Electrical Connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for outputs
Discrete Output Voltage
240 V AC relay output || 30 V DC relay output
Discrete Output Logic
positive or negative
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Product Or Component Type
discrete output module
Ambient Air Temperature For Storage
-25-70°C
Shock Resistance
15 gn 11 ms
Resistance To Fast Transients
2 kV relay outputEN/IEC 61000-4-4
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Discrete Output Type
relay normally open
Response Time
10 ms (turn-on) || 5 ms (turn-off)
Minimum Load
10 mA 5 V DC relay output
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Maximum Cable Distance Between Devices
unshielded cable <30 m relay output
Ip Degree Of Protection
IP20 with protective cover in place
Compatible Product Type
Programmable Logic Controllers
Compatible with Brand
Schneider
Compatible with Series
Modicon, M221, M241, M251, M262
Output Circuit Voltage - Maximum
30 V DC, 240 V AC
Output Circuit Current - Maximum
2 A
Wire Connection Type
Screw Clamp
