Item

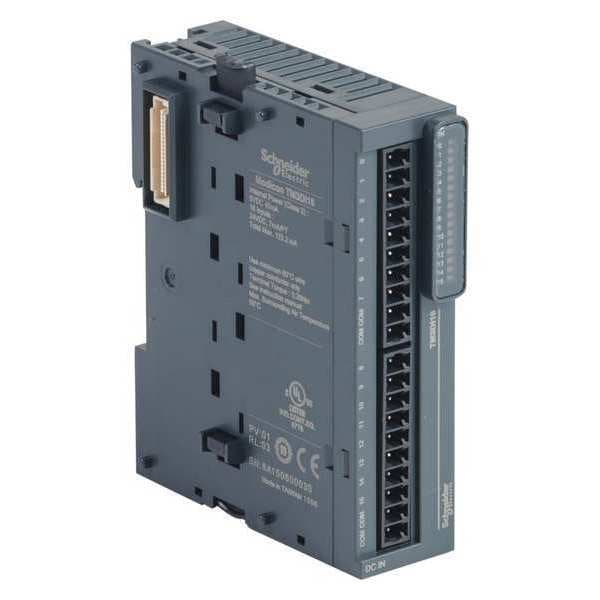

Discrete Input Module
For Use With
Modicon Mfr. No.M221 PLC
Features
Plate or Panel with Fixing Kit
Product Type
Discrete Input Module
Standards
EN/IEC 61131-2 || EN/IEC 61010-2-201
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Ambient Air Temperature For Storage
-25-70°C
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Product Or Component Type
discrete input module
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Local Signalling
for input status 1 LED per channel (green)
Discrete Input Voltage
24 V
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Discrete Input Number
16 input IEC 61131-2 type 3
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Voltage State 0 Guaranteed
0 to 5 V input
Storage Altitude
0-3000 m
Resistance To Fast Transients
1 kV I/OEN/IEC 61000-4-4
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Current Consumption
40 mA 5 V DC via bus connector at state on) || 5 mA 5 V DC via bus connector at state off) || 0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off)
Insulation
between input and internal logic 500 V AC || non-insulated between inputs
Current State 1 Guaranteed
>= 2.5 mA input)
Voltage State 1 Guaranteed
15 to 28.8 V input
Current State 0 Guaranteed
<= 1 mA input)
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Discrete Input Logic
sink or source (positive/negative)
Product Certifications
CE || cULus || UKCA || RCM || EAC
Discrete Input Current
7 mA input
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Discrete Input Voltage Type
DC
Maximum Cable Distance Between Devices
unshielded cable <50 m regular input
Surge Withstand
1 kV I/O common mode EN/IEC 61000-4-5 DC
Electrical Connection
10 x 1.5 mm² removable screw terminal block pitch 3.81 mm for inputs
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Response Time
4 ms (turn-on) || 4 ms (turn-off)
Shock Resistance
15 gn 11 ms
Ip Degree Of Protection
IP20 with protective cover in place
Input Circuit Current - Maximum
7 mA
Compatible with Brand
Schneider
Wire Connection Type
Screw Clamp
Compatible Product Type
Programmable Logic Controllers
Compatible with Series
Modicon, M221, M241, M251, M262
