Module

  • Mfr # 6ES7132-6GD51-0BA0
  • Zoro # G809016650
product price:
$
114.99
/ea
Free Shipping & Returns

Key Features

Depth
58 millimetre
Width
15 mm
Height
73 millimetre
Number of inputs, digital
0
description of product type
RQ CO 4x24VDC/2A ST
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
6ES7132-6GD51-0BA0
Zoro #
G809016650
UPC #
-
Country of Origin
Germany
Number of inputs, digital
0
description of product type
RQ CO 4x24VDC/2A ST
Number of HW interfaces Industrial Ethernet
0
System components present
Yes
Rack-assembly possible
No
digital outputs, configurable
Yes
Number of HW interfaces parallel
0
Number of HW interfaces serial RS232
0
Number of HW interfaces serial TTY
0
Number of HW interfaces, other
0
max. supply voltage with DC
28.8 volt
Number of outputs, digital
4
wall mounting/direct mounting possible
No
Short circuit protection, outputs present
No
Number of HW interfaces Wireless
0
Supply voltage type
DC
Design of digital output
Relay
Field bus connection possible via separate bus couplers
Yes
Output voltage type
AC/DC
Number of inputs
0
Number of outputs
4
min. supply voltage with DC
19 volt
Number of HW interfaces PROFINET
0
min. permissible voltage at output
19 volt
Manufacturer product family
ET 200SP
Number of HW interfaces serial RS422
0
Number of HW interfaces serial RS485
0
Optical interface present
No
Protection type IP
IP20
Corresponding operating medium (Ex ib)
No
Manufacturer product root
Digital module output
Power loss, static, current-independent [Pls]
1 watt
Corresponding operating medium (Ex ia)
No
Bearing track assembly possible
Yes
Max. perm. voltage
29 volt
Front installation possible
No

Dimensions

Depth
58 millimetre
Width
15 mm
Height
73 millimetre

Description

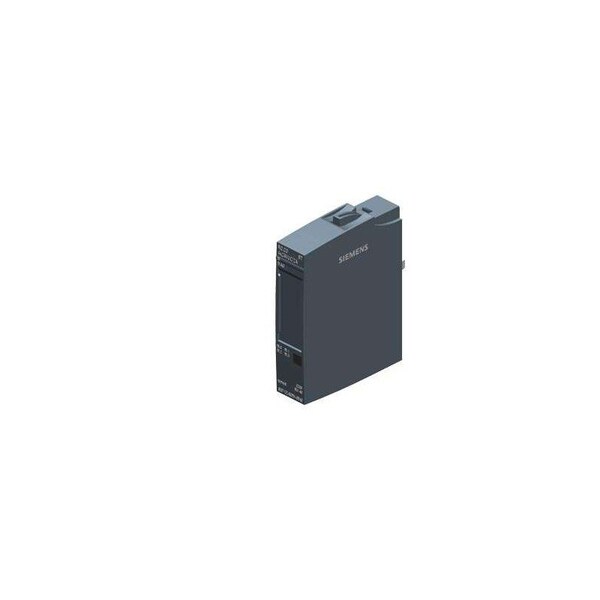

SIMATIC ET 200SP, Signal relay , RQ CO 4x 24V DC/2A ST, 4 changeover contacts, isolated contacts, packing unit: 1 piece, fits to BU-type A0, Colour Code CC00, substitute value output, diagnostics for: supply voltage
