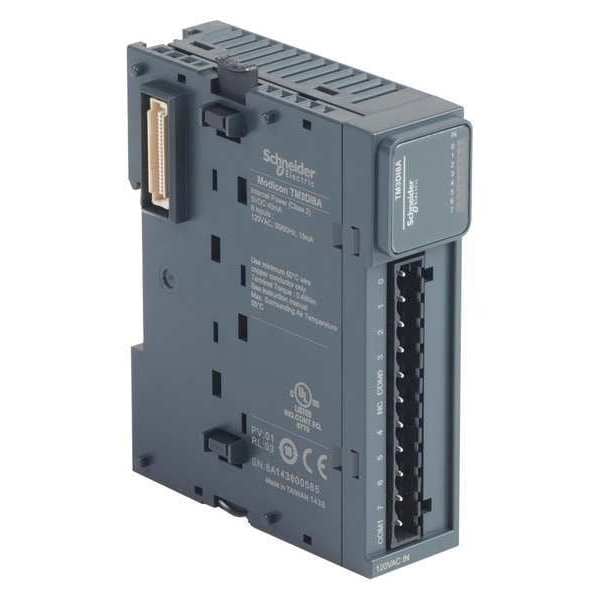

Item
Discrete Input Modules
For Use With
Modicon Mfr. No.M221 PLC
Features
Plate or Panel with Fixing Kit
Product Type
Discrete Input Modules
Standards
EN/IEC 61010-2-201 || EN/IEC 61131-2
Surge Withstand
2 kV I/O common mode EN/IEC 61000-4-5 AC
Product Certifications
cULus || CE || UKCA || RCM || EAC
Ambient Air Temperature For Storage
-25-70°C
Electrical Connection
11 x 2.5 mm² removable screw terminal block pitch 5.08 mm for inputs
Discrete Input Voltage Type
AC
Local Signalling
for input status 1 LED per channel (green)
Relative Humidity
10-95 %, without condensation in operation) || 10-95 %, without condensation in storage)
Discrete Input Voltage
120 V
Current State 0 Guaranteed
<= 15 mA input)
Resistance To Magnetic Fields
30 A/m 50/60 Hz EN/IEC 61000-4-8
Storage Altitude
0-3000 m
Product Or Component Type
discrete input module
Resistance To Fast Transients
1 kV I/OEN/IEC 61000-4-4
Discrete Input Number
8 input IEC 61131-2 Type 1
Resistance To Electrostatic Discharge
8 kV in air EN/IEC 61000-4-2 || 4 kV on contact EN/IEC 61000-4-2
Insulation
non-insulated between inputs || between input and internal logic 1500 V AC || between input groups 1500 V AC
Current Consumption
0 mA 24 V DC via bus connector at state on) || 0 mA 24 V DC via bus connector at state off) || 70 mA 5 V DC via bus connector at state on) || 25 mA 5 V DC via bus connector at state off)
Response Time
25 ms (turn-on) || 30 ms (turn-off)
Shock Resistance
15 gn 11 ms
Discrete Input Current
7.5 mA input
Ambient Air Temperature For Operation
-10-35°C vertical installation || -10-55°C horizontal installation
Vibration Resistance
3.5 mm 5-8.4 Hz DIN rail || 3 gn 8.4-150 Hz DIN rail || 3.5 mm 5-8.4 Hz panel || 3 gn 8.4-150 Hz panel
Voltage State 0 Guaranteed
0 to 20 V input
Electromagnetic Emission
radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz EN/IEC 55011 || radiated emissions 47 dBμV/m QP class A 10 m)230-1000 MHz EN/IEC 55011
Voltage State 1 Guaranteed
79 to 132 V input
Resistance To Electromagnetic Fields
10 V/m 80 MHz to 1 GHz EN/IEC 61000-4-3 || 3 V/m 1.4 GHz to 2 GHz EN/IEC 61000-4-3 || 1 V/m 2 GHz to 3 GHz EN/IEC 61000-4-3
Current State 1 Guaranteed
2 to 15 mA input)
Range Compatibility
Modicon M241 || Modicon M251 || Modicon M221 || Modicon M262
Mounting Support
top hat type TH35-15 rail IEC 60715 || top hat type TH35-7.5 rail IEC 60715 || plate or panel with fixing kit
Operating Altitude
0 to 6561.68 ft (0 to 2000 m)
Resistance To Conducted Disturbances
10 V 0.15 to 80 MHz EN/IEC 61000-4-6 || 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Ip Degree Of Protection
IP20 with protective cover in place
Input Circuit Current - Maximum
7.5 mA
Compatible Product Type
Programmable Logic Controllers
Compatible with Series
M221
Wire Connection Type
Screw Clamp
Input Circuit Voltage - Maximum
120 V AC
