  8. Extended Push Button Operator, 30 mm, 1NO, Black

This item is Discontinued.

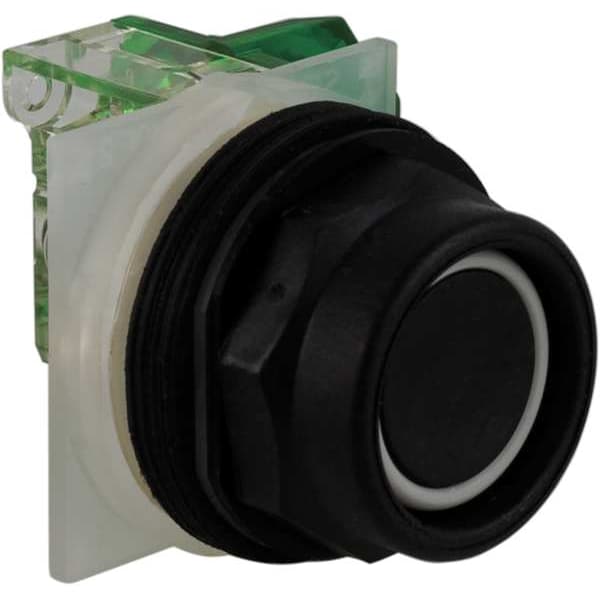

Schneider Electric Extended Push Button Operator, 30 mm, 1NO, Black 9001SKR2BH5

Extended Push Button Operator, 30 mm, 1NO, Black (Discontinued)

  • Mfr # 9001SKR2BH5
  • Zoro # G1534547
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001SKR2BH5
Zoro #
G1534547
UPC #
785901042587
Country of Origin
Mexico

Dimensions

Panel Cutout Diameter
30 mm
Size
30 mm
Manufacturer Warranty Length
18 mo
Mounting Diameter
30 mm

Details

Item
Extended Push Button Operator
Push Button Style
Extended
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Black
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
Bezel
Corrosion Resistant Thermoplastic
Contact Rating
10A @ 600V AC
Number of Operators
1
Features
Finger-Safe Terminals
Material
Plastic
Basic Material
Plastic
Type of Operator
Extended Button
NEMA Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Contact Form
1NO
NEMA Contact Rating Designation
A600/Q600
IP Rating
IP66
Color
Black
Bezel Material
Plastic
Series
9001SK
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
AC Contact Rating
1.2 A @ 600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Product Type
Push Button Operators
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D, Class II, Div 2, Group E, F, G, Class III, Div 1 and 2
Operator Voltage Rating - Maximum
600 V AC
Operating Temperature - Maximum
140 Degrees F
Mechanical Operating Durability
5.00 x 10^6
Resistance Properties
Corrosion Resistant, Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Operating Temperature - Minimum
-22 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X, 6
Number of Indicator Lights
0
Operator Material
Plastic
Ip Degree Of Protection
IP66
Contact Operation
standard
Device Short Name
9001SK
Device Presentation
complete product
Product Or Component Type
push-button
Mechanical Durability
5000000 cycles
Cap/Operator Or Lens Colour
black
Contacts Type And Composition
1 NO
Operator Profile
recessed, black recessed
Operator Additional Information
plastic guard
Nema Degree Of Protection
NEMA 1/2/3/3R/4/4X/6/12/13

Description

Extended Push Button Operator, 30 mm, Momentary Action, Extended Button Type of Operator, Head Material Plastic, Contact Form 1NO, Bezel Corrosion Resistant Thermoplastic, Color Black, Contact Rating 10A @ 600V AC, NEMA Contact Rating Designation A600/Q600, Number of Operators 1, NEMA Rating 1, 12, 13, 2, 3, 3R, 4, 4X, 6, IP Rating IP66, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, JIS C4520, JIS C852, REACH, RoHS, UL 508, WEEE
