- Item

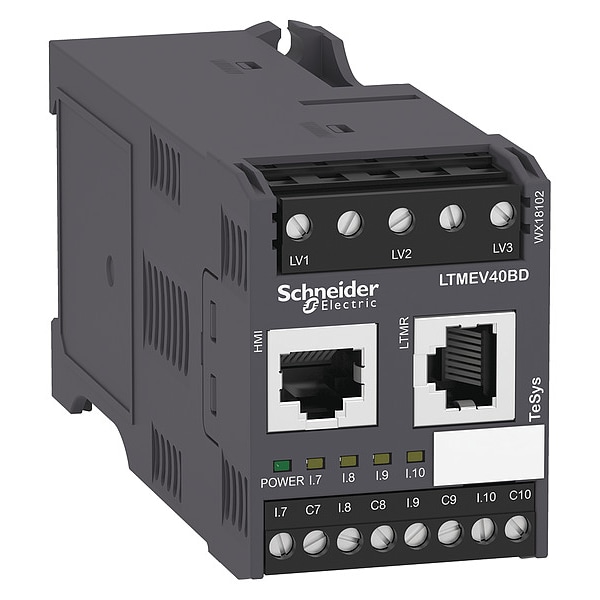

- Expansion Module Dc
- Standards
- IEC 60947-4-1 || UL 508 || EN 60947-4-1 || IACS E10 || CSA C22.2 No 14
- Fire Resistance
- 650°C EN/IEC 60695-2-12 || 960°C UL 94
- Pollution Degree
- 3
- Device Application
- equipment monitoring and control
- Current State 0 Guaranteed
- logic input < 5 V <= 15 mA 5 ms
- Product Name
- TeSys T
- Connection Pitch
- 5.08 mm
- Supply
- via the controller
- Ip Degree Of Protection
- IP20
- Logic Input Number
- 4
- Metering Type
- voltage U21, U32, U13, V1, V2, V3 || imbalance voltage || frequency || calculated active and reactive energy (+/- W.h, +/- VAR.h) || reactive power Q, Q1, Q2, Q3 || power factor || active power P, P1, P2, P3
- Maximum Operating Rate
- 1800 cyc/h
- Operating Altitude
- <= 6561.68 ft (2000 m) without derating
- Overvoltage Category
- III
- Electromagnetic Compatibility
electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || control circuit: surges (common mode), 1 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5
- Measurement Accuracy
- 1 % voltage 100 to 830 V) || 3 % power factor || 5 % active and reactive power
- Device Short Name
- LTME
- Ambient Air Temperature For Operation
- -20-60°C
- Input Current
- 7 mA
- Ambient Air Temperature For Storage
- -40-80°C
- Product Or Component Type
- extension module
- Range Compatibility
- TeSys (TeSys T) LTMR motor controller
- Tightening Torque
- control circuit 0.5-0.6 N.m flat 3 mm
- Connections - Terminals
control circuit connector 1 0.25-2.5 mm² AWG 24 to AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mm² AWG 24 to AWG 14)solid without cable end || control circuit connector 2 0.2-1 mm² AWG 24 to AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mm² AWG 24 to AWG 14)solid without cable end
- Maximum Operating Frequency
- 2 Hz
- Mechanical Robustness
- shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations mounted on symmetrical rail1 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5 to 300 Hz EN/IEC 60068-2-6
- Product Certifications
- UL || NOM || ATEX || BV || CSA || EAC || RINA || LROS (Lloyds register of shipping) || DNV || ABS || GL || KERI || RMRoS || C-tick || CCC
- [Ui] Rated Insulation Voltage
- 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
- Current State 1 Guaranteed
- logic input < 15 V 2 to 15 mA 15 ms
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV current or voltage measurement circuit EN/IEC 60947-4-1 || 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
- Range
- TeSys
- Protective Treatment
- 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
- Compatibility Code
- LTME
- Rated Impulse Withstand Voltage
- 6 kV current or voltage measurement circuit EN/IEC 60947-4-1; 0.8 kV supply, inputs and outputs EN/IEC 60947-4-1
- Rated Insulation Voltage
- 690 V EN/IEC 60947-1; 690 V CSA C22.2 No 14; 690 V UL 508
- Contact Type and Composition
- Without
- Pvc Free
- Yes
