- Item
- Expansion Module Ac
- Standards
- CSA C22.2 No 14 || IACS E10 || IEC 60947-4-1 || UL 508 || EN 60947-4-1
- Compatibility Code
- LTME
- Pollution Degree
- 3
- Device Short Name
- LTME
- Maximum Operating Frequency
- 2 Hz
- Tightening Torque
- control circuit 0.5-0.6 N.m flat 3 mm
- Connections - Terminals
control circuit connector 1 0.25-2.5 mm² AWG 24 to AWG 14)flexible with cable end || control circuit connector 1 0.2-2.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.25-2.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 1 0.2-2.5 mm² AWG 24 to AWG 14)solid without cable end || control circuit connector 2 0.2-1 mm² AWG 24 to AWG 14)flexible with cable end || control circuit connector 2 0.2-1.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.5-1.5 mm² AWG 24 to AWG 14)flexible without cable end || control circuit connector 2 0.2-1 mm² AWG 24 to AWG 14)solid without cable end
- Mechanical Robustness
- shocks half sine wave acceleration15 Gn for 11 ms EN/IEC 60068-2-27 || vibrations mounted on symmetrical rail1 Gn, 5 to 300 Hz EN/IEC 60068-2-6 || vibrations plate mounted4 Gn, 5 to 300 Hz EN/IEC 60068-2-6
- Range
- TeSys
- Range Compatibility
- TeSys (TeSys T) LTMR motor controller
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV supply, inputs and outputs EN/IEC 60947-4-1 || 6 kV current or voltage measurement circuit EN/IEC 60947-4-1
- Ambient Air Temperature For Storage
- -40-80°C
- Operating Altitude
- <= 6561.68 ft (2000 m) without derating
- Protective Treatment
- 12 x 24 hour cycles EN/IEC 60068-2-30 || 48 h EN/IEC 60070-2-11 || TH EN/IEC 60068
- Overvoltage Category
- III
- Measurement Accuracy
- 1 % voltage 100 to 830 V) || 3 % power factor || 5 % active and reactive power
- Product Name
- TeSys T
- [Ui] Rated Insulation Voltage
- 690 V EN/IEC 60947-1 || 690 V CSA C22.2 No 14 || 690 V UL 508
- Product Certifications
- LROS (Lloyds register of shipping) || ATEX || NOM || EAC || RMRoS || GL || UL || DNV || BV || RINA || KERI || C-tick || CSA || CCC || ABS
- Maximum Operating Rate
- 1800 cyc/h
- Metering Type
- imbalance voltage || active power P, P1, P2, P3 || calculated active and reactive energy (+/- W.h, +/- VAR.h) || voltage U21, U32, U13, V1, V2, V3 || reactive power Q, Q1, Q2, Q3 || frequency || power factor
- Ip Degree Of Protection
- IP20
- Device Application
- equipment monitoring and control
- Connection Pitch
- 5.08 mm
- Electromagnetic Compatibility
electrostatic discharge, 3, 8 kV air, 6 kV contact, conforming to EN/IEC 61000-4-2 || fast transients immunity test (other circuits), level 3, 2 kV, conforming to EN/IEC 61000-4-4 || fast transients immunity test (on supply and relay outputs), level 4, 4 kV, conforming to EN/IEC 61000-4-4 || conducted RF disturbances, 10 V, conforming to EN/IEC 61000-4-6 || control circuit: surges (serial mode), 1 kV, conforming to EN/IEC 61000-4-5 || communication: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (serial mode), 2 kV, conforming to EN/IEC 61000-4-5 || voltage inputs: surges (common mode), 4 kV, conforming to EN/IEC 61000-4-5 || control circuit: surges (common mode), 2 kV, conforming to EN/IEC 61000-4-5
- Logic Input Number
- 4
- Current State 1 Guaranteed
- logic input 79 to 264 V <= 15 mA 25 ms
- Ambient Air Temperature For Operation
- -20-60°C
- Current State 0 Guaranteed
- logic input 0 to 40 V 2 to 15 mA 25 ms
- Input Current
- 3.1 mA 100 V || 7.5 mA 240 V
- Fire Resistance
- 650°C EN/IEC 60695-2-12 || 960°C UL 94
- Product Or Component Type

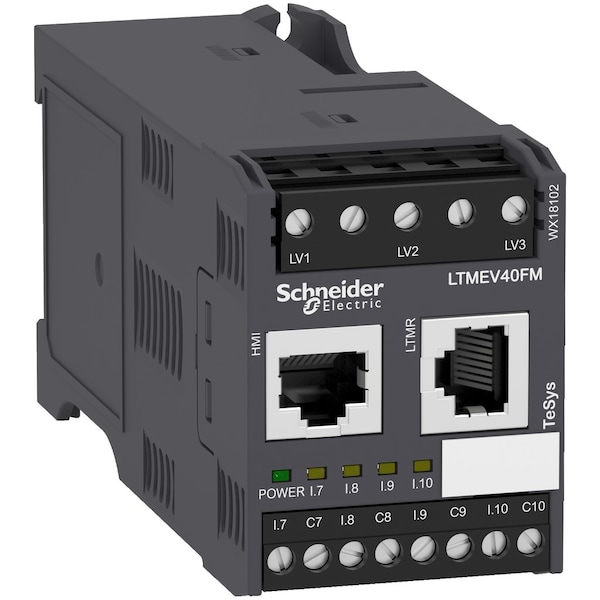

- extension module
- Supply
- via the controller
