  13. Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect

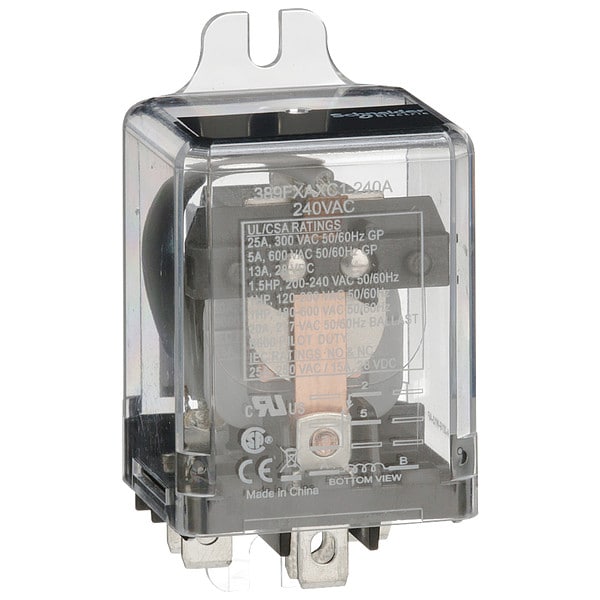

Schneider Electric Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect 389FXAXC1-240A - main

Flange Mount, Enclosed Power Relay, Square, 25 A, 5 Pins, Quick Connect

  • Mfr # 389FXAXC1-240A

  • Zoro # G0935907

product price: $30.29
/ea

Key Features

Mounting Style
Flange Mount
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
389FXAXC1-240A
Zoro #
G0935907
UPC #
-
Country of Origin
China

Dimensions

Dimensions
2.90"H, 1.53"W, 1.40"D
Overall Height - Relay
2.9 in
Body Width
1.53 in
Body Depth
1.4 in
Overall Depth
2.9 in
Body Height
2.9 in

Details

Item
Enclosed Power Relay
Mounting Style
Flange Mount
Electrical Connection
Quick Connect
Base Shape
Square
Number of Pins
5
Coil Voltage
240V AC
Current Rating
25 A
Contact Form
SPDT
Contact Rating (AC)
20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V
Contact Rating (DC)
13 A @ 28V, 15 A @ 28V
Number of Poles
1
Power Consumption - Relay
3.5 VA
Hz
50/60
Contact Material
Silver Alloy
Coil Rating
3.5VA, 1.4W
Features
1hp @ 480-600V, Flag Indicator
Contact Amp Rating (Resistive)
25A @ 300VAC, 13A @ 28VDC
Standards
CE Certified, CSA Certified, cURus
Series
389F Power Series
Dielectric Strength
1,600V AC Between Contacts, 2,200V AC Between Coil and Contact, 2,200V AC Between Poles
Mechanical Operating Durability
5,000,000
Power Consumption
1.3 W, 2 VA
Input Voltage
240V AC
Horsepower @ 240V AC
1 1/2 hp
Operating Current
13 A at 28V DC (Resistive Load), 15 A at 28V DC-1 (NO/NC), 20 A at 277V AC (Ballast), 22 A at 120V AC (Full Load), 25 A at 250V AC-1 (NO/NC), 25 A at 300V AC (Resistive Load), 5 A at 600V AC (Resistive Load)
Maximum Operating Temperature
131 Degrees F
Response Time
20 msec
Frequency
50/60 Hz
Coil Resistance
7,200 ohm
Horsepower @ 120V AC
1 hp
Minimum Operating Temperature
-22 Degrees F
Weight
2.96 oz
Electrical Operating Durability
100,000
Motor Rated
Yes
Minimum Switching Current
100 mA
Maximum Switching Voltage
600V AC
Status Indicator
Mechanical Flag
Power consumption in VA
2 VA AC
Connections Terminals
Quick
Product Certifications
cURus; CSA; CE
Drop-out Voltage Threshold
>= 0.1 Uc AC/DC
Ambient Air Temperature for Storage
-22 to 185°F (-30 to 85°C)
Motor Power HP
1.5 hp 200/240 V AC 50/60 Hz; 1 hp 120...200V AC 50/60 Hz; 1 hp 600 V AC 50/60 Hz
Power consumption in W
1.3 W DC
Contact Composition
1 NC + 1 NO
Ambient Air Temperature for Operation
-22 to 131°F (-30 to 55°C)
Voltage Range
0.85...1.1 Uc AC
Push-To-Test Method
No Test Button

Description

Enclosed Power Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form SPDT, Current Rating 25 A, Electrical Connection Quick-Connect, Number of Pins 5, Status Indicator Mechanical Flag, Contact Rating (AC) 20 A @ 277V, 22 A @ 120V, 25 A @ 250/300V, 5 A @ 600V, Contact Rating (DC) 13 A @ 28V, 15 A @ 28V, Horsepower @ 120V AC 1 hp, Horsepower @ 240V AC 1 1/2 hp, Mounting Style Flange, Body Depth 1.4 in, Body Height 2.9 in, Body Width 1.53 in, Coil Resistance 7,200 ohm
