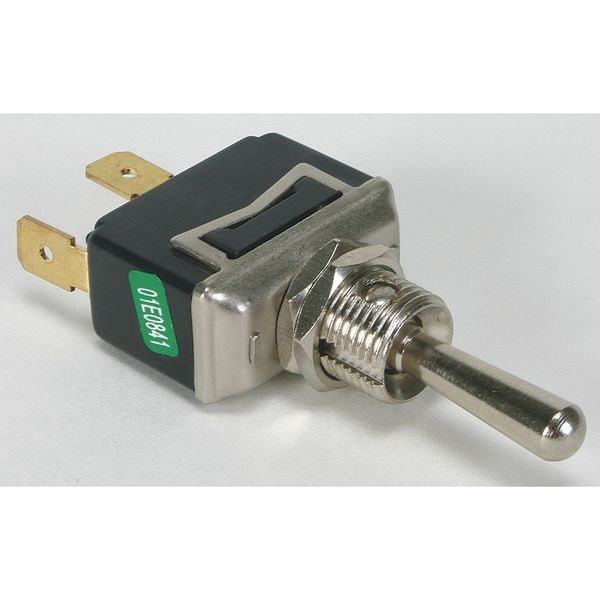

Toggle Switch, SPST, 15A at 277V, QuikConnct

  • Mfr # 2LMZ1

  • Zoro # G2809222

product price:
$
6.29
/ea

Key Features

Switch Function
Momentary On/Off
Stem Length
0.47 in
HP
1 1/2 hp
Operating Temp. Range
185 Degrees F
Actuator Length
0.78 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2LMZ1
Zoro #
G2809222
UPC #
190735592656
Country of Origin
China

Dimensions

Stem Length
0.47 in
Actuator Length
0.78 in
Stem Dia. and Thread Size
5/8 in x M12 x 1 6g
Overall Height
1.26 in
Overall Depth
0.47 in
Stem Diameter
0.47 in
Mounting Hole Diameter
0.5 in
Overall Width
0.47 in
Stem Thread Size
M12 x 1
Manufacturer Warranty Length
2 yr

Details

Item
Toggle Switch
Switch Function
Momentary On/Off
HP
1 1/2 hp
Operating Temp. Range
185 Degrees F
Mounting Hole
0.50 in dia
Contact Form
SPST
Terminals
Quick Connect
Actuator Style
Bat
AC Contact Rating
15 A @ 277 V, 20 A @ 125 V, 18 A @ 125 V
Standards
cRUus
Number of Connections
2
IP Rating
IP40
Product Type
Toggle Switch
Series
HY29
Switch Function Configuration
Momentary On/Off
Horsepower
1 1/2 hp
Actuator Material
Metal
Operating Temperature - Maximum
185 Degrees F
Base Type
Flat
Metal Actuator Finish
Nickel
Terminal Connection Type
Quick Connect Tab
Operating Temperature - Minimum
32 Degrees F
Operator Illumination Style
Non-Illuminated
Number of Positions
2
Number of Poles
1

Description

Toggle Switch, Contact Form SPST, Number of Connections 2, Switch Function Momentary On/Off, AC Contact Rating 15 A @ 277 V, 20 A @ 125 V, 18 A @ 125 V, HP 1 1/2 hp, Terminals Quick Connect, Mounting Hole 0.50 in dia, DC Contact Rating Not Applicable, Actuator Style Bat, Actuator Length 0.78 in, Stem Length 0.47 in, Stem Dia. and Thread Size 5/8 in x M12 x 1 6g, Operating Temp. Range 185 Degrees F, Standards cRUus, Includes Not Applicable
