  11. Flat screen, Harmony GTU, 12.1inch wide display, smart WLAN

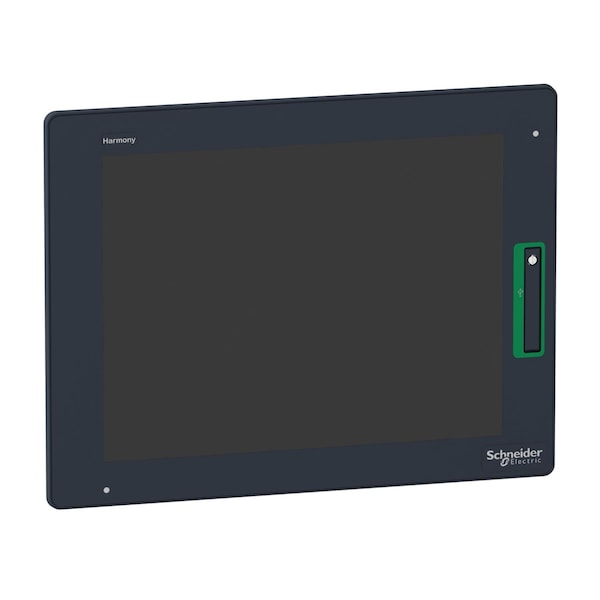

Schneider Electric Flat screen, Harmony GTU, 12.1inch wide display, smart WLAN HMIDT643 - main

Flat screen, Harmony GTU, 12.1inch wide display, smart WLAN

  • Mfr # HMIDT643

  • Zoro # G900905181

product price: $4,466.99
/ea
Free Shipping & Returns

Key Features

Display Type
colour TFT LCD
Height
241 mm
Width
315 mm
Depth
67 mm
Standards
UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, IEC 61132-2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
HMIDT643
Zoro #
G900905181
UPC #
-
Country of Origin
China

Dimensions

Height
241 mm
Width
315 mm
Depth
67 mm
Bandwidth
20-20 MHz
Cut-Out Dimensions
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) mm
Display Size
12.1 inch

Details

Item
Xga Wlan Touch Smart Display 12.1
Display Type
colour TFT LCD
Standards
UL 508, ANSI/ISA 12-12-01, class I division 2 CSA C22.2 No 213, CSA C22.2 No 142, IEC 61132-2
Touch Panel
multi touch analogue resistive
Touchscreen Resolution
1024 x 1024
Ip Degree of Protection
front panel IP66, front panel IP67
Integrated Connection Type
USB 2.0 type A, USB 2.0 type mini B
Backlight Lifespan
50000 hours
Transmission Rate
<= 11 Mbit/s IEEE 802.11b, <= 54 Mbit/s IEEE 802.11g, <= 72.2 Mbit/s IEEE 802.11n
Type of Cooling
natural convection
Product or Component Type
flat screen
Aspect Ratio
4:3
Display Colour
16 million colours
Operating Altitude
6561.68 ft (2000 m)
Terminal Type
touchscreen display
Operating Mode
infrastructure
Nema Degree of Protection
NEMA 4X front panel
Type of License
10 clients
Shock Resistance
147 m/s²IEC 61131-2
Inrush Current
30 A
Vibration Resistance
3.5 mm constant amplitude 5-9 Hz) IEC 61131-2, 9.8 m/s² 9-150 Hz) IEC 61131-2
Relative Humidity
10-90 % non-condensing
Communication Port Protocol
WLAN 2.4 GHz
Display Resolution
1024 x 768 pixels XGA
Ambient Air Temperature For Operation
0-60°C IEC 61131-2
Range of Product
Harmony GTU
Electromagnetic Compatibility
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Maximum Sensing Distance
30 m depending on surrounding environment
Function Available
brightness sensor
[Us] Rated Supply Voltage
12...24 V DC power supply
Type of Installation
indoor installation
Supply Voltage Limits
10.8-28.8 V
Ambient Air Temperature For Storage
-20-60°C
Power Consumption In W
23 W
Method of Access
client mode 1-11 , North America, client mode 1-13 , Japan, client mode 1-13 , Europe, client mode 1-13 , Korea, client mode 1-13 , China, client mode 1-11 , Taiwan, access point mode 1-11
Encryption Protocol
WEP 128, AES (Advanced Encryption Standard), TKIP
Product Or Component Type
flat screen
Ip Degree Of Protection
front panel IP66 || front panel IP67
Nema Degree Of Protection
NEMA 4X front panel
Display type
colour TFT LCD
Type Of Cooling
natural convection
Type Of Installation
indoor installation
Method Of Access
client mode 1-11 , North America || client mode 1-13 , Japan || client mode 1-13 , Europe || client mode 1-13 , Korea || client mode 1-13 , China || client mode 1-11 , Taiwan || access point mode 1-11
Product Certifications
CE || cULus || KC || RCM || UKCA || UKEX

Description

Xga Wlan Touch Smart Display 12.1
