Shop SCHNEIDER ELECTRIC

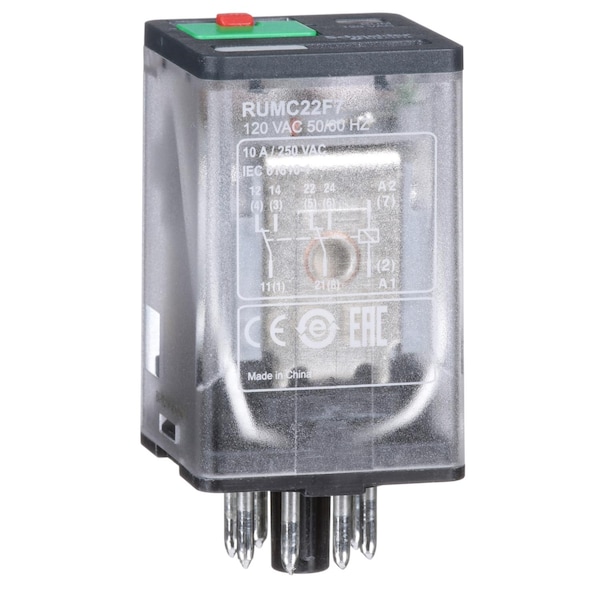

Universal Plug-In Relay, 120 VAC, 120V AC Coil Volts, 2 C/O

  • Mfr # RUMC22F7

  • Zoro # G1012460

CAD Available
product price:
$
16.29
/ea

Key Features

CAD Drawing
Base Shape
Octal
Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10A @ 28V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RUMC22F7
Zoro #
G1012460
UPC #
-
Country of Origin
China

Details

Item
Plug-In Relay
Base Shape
Octal
Coil Voltage
120V AC
Current Rating
10 A
Contact Rating (AC)
10 A @ 250V AC (NO), 10 A @ 277 V AC, 5 A @ 250 V AC (NC)
Contact Rating (DC)
10A @ 28V DC
Standards
EN/IEC 61810-1; UL 508 C22.2 No 14; EAC
Power Consumption - Relay
3 VA
Contact Material
AgNi
Features
Lockable Test Button; Status LED
Operating Temp. Range
-40-55°C
Switching Power
Max 2500 VA/280 W; Min 170 mW 10 mA, 17 V
Operating Time
20 ms at nominal voltage
Protection Category
RT I
Switching Voltage
250 V IEC
Dielectric Strength
1500 V AC between contacts with micro disconnection; 2500 V AC between coil and contact with reinforced; 2000 V AC between poles with basic
Coil Resistance
1700 Ohm
Series
RUM; Universal
Pin Shape
cylindrical
CAD Available
Yes
Contact Form
DPDT
Electrical Connection
Plug In
Number of Pins
8

Description

Universal Plug-In Relay,120 VAC
