  15. Safety Switch, Fusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel

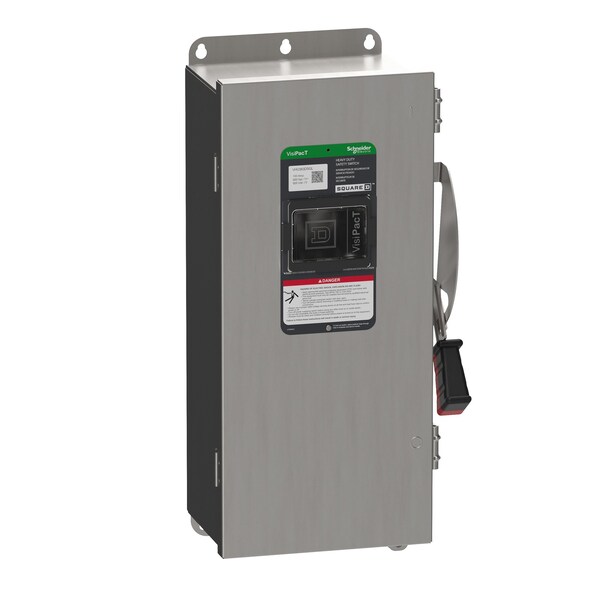

Schneider Electric Safety Switch, Fusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel VH363DSGL - main

Safety Switch, Fusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel

  • Mfr # VH363DSGL

  • Zoro # G209691358

product price: $4,402.99
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
For Fuse Class
Class H, K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
VH363DSGL
Zoro #
G209691358
UPC #
3606485894232
Country of Origin
United States

Dimensions

Height
20 3/4 in
Depth
7 1/4 in
Width
9 3/8 in
Maximum Enclosure Depth
7.26 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
100 A
Phase
Three
For Fuse Class
Class H, K
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4X
HP
75 HP
Voltage
600 V
Handle Color
Black/Red
Housing Material
18-8 Stainless Steel
Standards
EU RoHS, UL Listed file E2875
Number of Wires
3
Number of Poles
3
Amps
100 A
Duty
Heavy Duty
Includes
Dual Cover Interlock
Neutral Assembly Included
No
Number of Locks
2
Includes Interlocked Receptacle
Yes
Horsepower @ 480V AC
60 hp
Mounting Style
Surface Mount
Features
Quick Make/Break Operating Mechanism, Viewing Window
Series
F
Horsepower @ 240V AC
50 hp
Number of Mounting Holes
6
Fuse Kit (Class R)
Mfr. No. RFK10
NEMA Enclosure Rating
4X
Horsepower @ 600V AC
75 hp
Compatible with Manufacturer Model Number
RFK10
Compatible Manufacturer Part Number
RFK10
Compatible Manufacturer Model Number
RFK10
For Use With Mfr. Model Number
RFK10
Product Or Component Type
Single Throw Safety Switch
Product Certifications
UL listed file E2875
Device Composition
field installed kit available
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Tightening Torque
50-50 lbf.in (AWG 1...AWG 3/0) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Electrical Connection
lugs
Series Name
heavy duty
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Device Mounting
surface
Device Application
heavy application
Disconnector Device Type
fusible disconnect
Wiring Configuration
3-wire
Compatible with Manufacturer Model No.
RFK10
Compatible with Mfr. Model No.
RFK10
For Use with Mfr Model Number
RFK10
Compatible Pump Manufacturer Part Number
RFK10
Compatible Mfr. Model Number
RFK10

Description

Safety Switch, Compatible with Manufacturer Model Number RFK10, Contact Form 3PST, Current Rating 100 A, Depth 7 1/4 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK10, Handle Color Black/Red, Height 20 3/4 in, Horsepower @ 240V AC 50 hp, Horsepower @ 480V AC 60 hp, Horsepower @ 600V AC 75 hp, Housing Material 304 Stainless Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
