Shop SCHNEIDER ELECTRIC

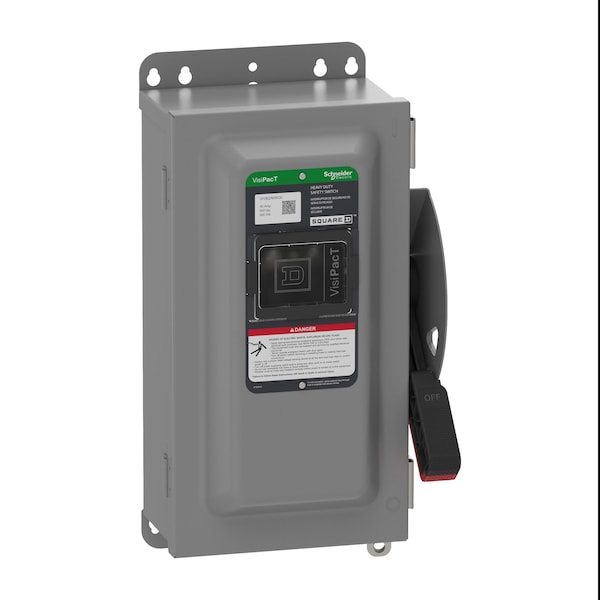

Safety Switch, Fusible, 3PST, Three Phase, NEMA 12, Indoor, Steel

  • Mfr # VH362AWKGL

  • Zoro # G909691337

CAD Available
product price:  $962.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VH362AWKGL
Zoro #
G909691337
UPC #
3606485894065
Country of Origin
United States

Dimensions

Width
8 7/8 in
Depth
7 1/8 in
Height
16 1/2 in
Maximum Enclosure Depth
7.16 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor
Enclosure Type
NEMA 12
HP
30 HP @ 480V
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Number of Poles
3
Duty
Heavy Duty
IP Rating
IP52
Number of Wires
3
Neutral Assembly Included
No
Amps
60 A
Includes
Dual Cover Interlock
Horsepower @ 600V AC
50 hp
Mounting Style
Surface Mount
Fuse Kit (Class R)
Mfr. No. RFK03H
Features
Quick Make/Break Operating Mechanism, Viewing Window
NEMA Enclosure Rating
12
Number of Locks
2
Includes Interlocked Receptacle
Yes
Number of Mounting Holes
8
Series
F
Horsepower @ 480V AC
30 hp
Compatible with Manufacturer Model Number
RFK03H
Horsepower @ 240V AC
Not Rated
Compatible Manufacturer Part Number
RFK03H
Compatible Manufacturer Model Number
RFK03H
For Use With Mfr. Model Number
RFK03H
Product Certifications
UL listed file E2875
Device Application
heavy application
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Electrical Connection
lugs
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Series Name
heavy duty
Disconnector Device Type
fusible disconnect
Product Or Component Type
Single Throw Safety Switch
Wiring Configuration
3-wire
Device Mounting
surface
Device Composition
field installed kit available
Compatible with Manufacturer Model No.
RFK03H
Compatible with Mfr. Model No.
RFK03H
For Use with Mfr Model Number
RFK03H
Compatible Pump Manufacturer Part Number
RFK03H
Compatible Mfr. Model Number
RFK03H
CAD Available
Yes
For Manufacturer Part Number
RFK03H
Compatible with Mfr. Model Number
RFK03H

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03H, Contact Form 3PST, Current Rating 60 A, Depth 7 1/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03H, Handle Color Black/Red, Height 16 1/2 in, Horsepower @ 240V AC Not Rated, Horsepower @ 480V AC 30 hp, Horsepower @ 600V AC 50 hp, Housing Material Galvannealed Steel

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
