  11. Ground Fault Sensor, Toroid, 50 mm, 85A

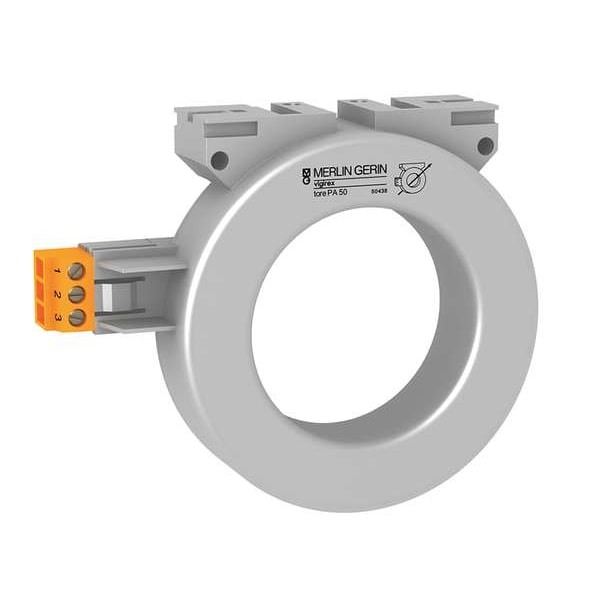

Schneider Electric Ground Fault Sensor, Toroid, 50 mm, 85A 50438 - main

Ground Fault Sensor, Toroid, 50 mm, 85A

  • Mfr # 50438

  • Zoro # G2264866

product price: $407.99
/ea
Free Shipping & Returns

Key Features

Type
Toroid Sensor PA50 TYPE A 50mm (2 in)
Amps AC
85
Contains
1.97 in Hole dia
For Use With
TeSys T Motor Management System
Length (In.)
4.29 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
50438
Zoro #
G2264866
UPC #
785901766360
Country of Origin
France

Dimensions

Length (In.)
4.29 in
Depth
1.14 in
Cable Dia.
25 mm
Inside Dia.
50 mm
Height
4.25 in
Length
88 mm
Width
3.46 in
Cable Outer Diameter
0.98 in (25 mm) 0.08 in² (50 mm²)
Diameter
Inner 1.97 in (50 mm)

Details

Item
Ground Fault Sensor
Type
Toroid Sensor PA50 TYPE A 50mm (2 in)
Amps AC
85
Contains
1.97 in Hole dia
For Use With
TeSys T Motor Management System
Standards
RoHS Compliant
Series
PA50
Rated Short-Time Withstand Current
85 kA at 0.5 s
Weight
0.44 lb
Rated Insulation Volts
1000V
Network Types
AC/DC
Heat Value
1.42 MJ
Connection Type
Screw Connection
Operating Temp. Range
-35 to 70°C
IP Rating
IP20; IP30
Environment
Damp
Application
Equipment Monitoring and Control
Hz
45 to 440 Hz
Storage Temp. Range
-55 to 85°C
Impulse Withstand Voltage
12 kV
Features
Mercury Free; Overvoltage Category IV; Pollution Degree level 3 IEC 60664-1
Mounting
Fixed Plain Backplate, Fixed Profiled Sheet Metal, Fixed Slotted Backplate, Din Rail, Vigirex Relay
Compatible Series
RH10M, RH10P, RH197M, RH197P, RH21M, RH21P, RH68M, RH86M, RH86P, RH99M, RH99P, RHU, RHUs, RMH
Product Type
Closed Toroid
Number of Pieces
1
Pollution Degree
Level 3 IEC 60664-1
Environmental Characteristic
Exposure to damp heat not in service 25 to 55°C, RH 95%) 28 cycles IEC 60068-2-30; Salt mistKb/2 IEC 60068-2-52; Exposure to damp heat in servicecategory C2 48 hours IEC 60068-2-56
Transformer Ratio
1/1000
Mounting Mode
Fixed plain backplate; Fixed profiled sheet metal; Fixed slotted backplate; Clip-on DIN rail; Clip-on Vigirex relay)
Range Compatibility
VigiPacT RH10M residual current protection relay; VigiPacT RH10P residual current protection relay; VigiPacT RH21M residual current protection relay; VigiPacT RH21P residual current protection relay; VigiPacT RH68M residual current protection relay; VigiPacT RH86M residual current protection relay; VigiPacT RH86P residual current protection relay; VigiPacT RH99M residual current protection relay; VigiPacT RH99P residual current protection relay; VigiPacT RH197M residual current protection relay; VigiPacT RH197P residual current protection relay; VigiPacT RHU residual current protection relay; VigiPacT RHUs residual current protection relay; VigiPacT RMH residual current protection relay
Current Sensor Type
A type closed toroid
Connections - Terminals
Screw connection 0.00 in² (0.22 mm²)
Product Certifications
CE
Ambient Air Temperature For Storage
-67 to 185°F (-55 to 85°C)
Overvoltage Category
IV
Rated Operational Current
85 A
Product Or Component Type
Earth leakage current sensor
Rated Insulation Voltage
1000 V
IP Degree Of Protection
Connectors IP20; IP30
Residual Short-Circuit Withstand Current
85 kA / 0.5 s IEC 60947-2
Ambient Air Temperature For Operation
-31 to 158°F (-35 to 70°C)
Rated Short Time Withstand Current
85 kA 0.5 s

Description

Ground Fault Sensor, Application Equipment Monitoring and Control, Compatible Series RH10M, RH10P, RH197M, RH197P, RH21M, RH21P, RH68M, RH86M, RH86P, RH99M, RH99P, RHU, RHUs, RMH, Product Type Closed Toroid, Depth 1.14 in, Height 4.25 in, IP Rating IP20; IP30, Number of Pieces 1, Standards RoHS Compliant, Weight 0.44 lb, Width 3.46 in
