  8. Harmony XB4, Body Contact, 2 NO, Metal, Fixing Collar, Push-In Terminals

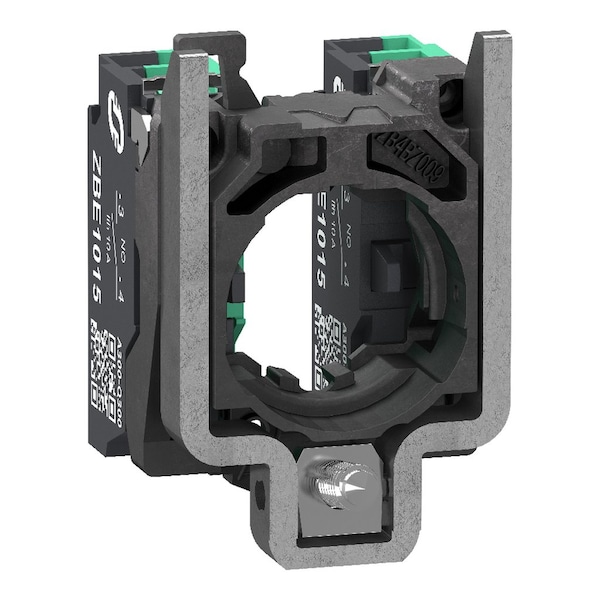

Schneider Electric Harmony XB4, Body Contact, 2 NO, Metal, Fixing Collar, Push-In Terminals ZB4BZ1035 - main

Harmony XB4, Body Contact, 2 NO, Metal, Fixing Collar, Push-In Terminals

  • Mfr # ZB4BZ1035

  • Zoro # G3548572

product price:  $31.79
/ea
Sold in multiples of 5 for $158.95

Key Features

Size
22 mm
Application
General Purpose
Contact Form
2NO
Color
Black
NEMA Contact Rating Designation
A600/Q600
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZB4BZ1035
Zoro #
G3548572
UPC #
785901869573
Country of Origin
France

Dimensions

Size
22 mm
Connection Size
22 mm
Manufacturer Warranty Length
18 mo
Cad Overall Height
47 mm
Cad Overall Depth
37 mm
Cad Overall Width
30 mm

Details

Item
Contact Block
Application
General Purpose
Contact Form
2NO
Color
Black
NEMA Contact Rating Designation
A600/Q600
For Use With
Flat Surface of Enclosure Type 4, 4X, 12 and 13
Terminal Connection
Spring Clamp
Safety Rating
CSA C22.2 No 14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
Standards
CSA C22.2 No.14, IEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, JIS C8201-1, JIS C8201-5-1, UL 508
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Compatible with Series
ZB4
Compatible Operator
Push Button
Terminal Connection Type
Push-In
Switch Action
Momentary
AC Contact Rating
1.2 A @600 V, 1.5 A @ 480 V, 3 A @ 240 V, 6 A @ 120 V
Includes Mounting Block
Mounting Block Included
Contacts Type And Composition
2 NO
Product Or Component Type
complete body/contact assembly
Operating Travel
2.6 mm NO changing electrical state) || 4.3 mm total travel)
Shock Resistance
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Product Certifications
DNV || CSA || GL || LROS (Lloyds register of shipping) || BV || UL
Protective Treatment
TH
Positive Opening
without
Contact Operation
slow-break
Device Short Name
ZB4
Head Type
standard
Contact Block Type
single
Connections - Terminals
spring clamp terminals
Mechanical Durability
5000000 cycles
Ip Degree Of Protection
IP20 IEC 60529
Contacts Material
silver alloy (Ag/Ni)
Fixing Collar Material
zamak
Operating Torque
0.05 N.m NO changing electrical state
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
5 gn 2-500 Hz)IEC 60068-2-6
Device Composition
fixing collar || body
Contacts Usage
standard contacts
Electrical Durability
10000000 cycles
Terminals Description Iso N°1
(13-14)NO
Ambient Air Temperature For Operation
-40-70°C

Description

This Harmony XB4, single contact block is pre-assembled on a body/collar fixing unit. It features 2 normally open (NO) contacts. It is compatible with Harmony XB4 units. It consists of a single contact block pre-assembled on a fixing collar unit. Simply adding a head to this assembly will provide you with a complete ready-to-use push button. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. 1 million cycle high endurance provides less maintenance and damage in your installation. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. This metal product weighs 54g. It is easily installed with push-in terminal connections. Thanks to its simplicity of installation, flexibility, and robustness, it meets the requirements of the majority of industrial applications Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
