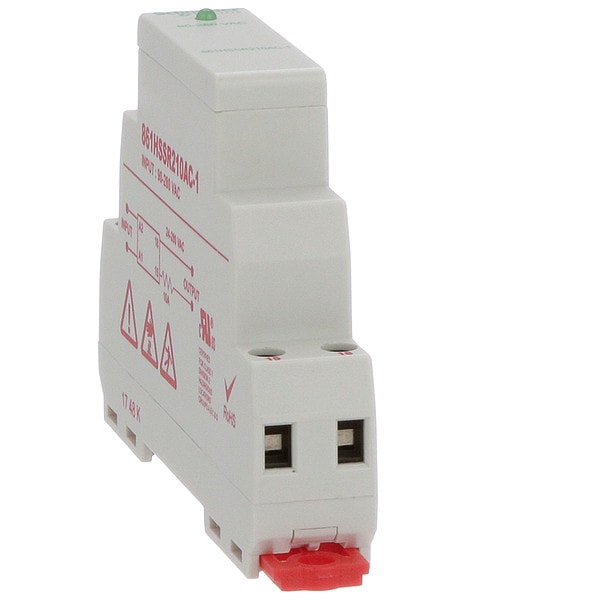

Schneider Electric Hazardous Location Solid State Relay, 10A 861HSSR210-AC-1

Hazardous Location Solid State Relay, 10A (Discontinued)

  • Mfr # 861HSSR210-AC-1
  • Zoro # G0667606
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
861HSSR210-AC-1
Zoro #
G0667606
UPC #
-
Country of Origin
India

Dimensions

Body Depth - Relay
0.7 in
Body Width - Relay
3.5 in
Body Height - Relay
2.6 in
Overall Height - Relay
2.6 in
Depth
3.54 in (89.93 mm)
Height
2.56 in (65 mm)
Width
0.62 in (15.75 mm)
Body Width
0.62 in
Body Depth
2.6 in
Overall Depth
2.6 in
Body Height
3.5 in

Details

Item
Hazardous Location Solid State Relay
Contact Form - Relay
SPST-NO
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Voltage Output
24 to 280VAC
Relay Turns On At
Zero Crossing
Turns On At
Zero Cross
Output or Controlled Voltage Range
24 to 280V AC
Mounting - Relay
DIN Rail
Max. Output w/Heat Sink
10A
Mounting
DIN
Input Voltage
90 to 280V AC
Finger Safe
Yes
Item - Relay
Hazardous Location Solid State Relay
Phase
1
Input Power Consumption (Burden)
3.4VA
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Max. Output Amps w/Heat Sink
10 A
Switch Type
SCR
Includes
Internal Heat Sink
Input or Control Voltage
90 to 280V AC
Case Color
Gray
Heat Sink
Integral
Input or Control Voltage Range
90 to 280VAC
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Current Type
AC
Minimum Operating Temperature
-22 Degrees F
Series
861H Series
Switch Configuration
Form A
Electrical Phase
Single
Maximum Output Current with Heat Sink
10 A
Switch Component Type
SCR
Input Current
20 mA
Drop Out Voltage
1.6V AC
Response Time
40 msec
Output Voltage Range
24 to 280V AC
Maximum Operating Temperature
176 Degrees F
Maximum Output Current without Heat Sink
10 A
IP Rating
IP20
Dielectric Strength
4,000V
Voltage Type
AC Output
Weight
4.48 oz
Status Indicator
Green LED Indicator
Output Switching Mode
Zero Crossing
Switching Device
SCR output; Zero voltage switching
Contacts Type and Composition
NO
Surge Current
500 A 1 cycle
Leakage Current
6 mA at off-state 240 V AC
Local Signalling
for input status 1 LED (green)
Must Release Voltage
10 V
Product Type
Solid state relay
Control Circuit Voltage
90...280 V AC
Product Certifications
CE; CSA; UL
Input Current Limits
20 mA at 240 V AC typical
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
DV/dt
500 V/µs off-state at maximum rated voltage
Mounting Support
Panel; DIN rail
Tightening Torque
0.8 N.m for input/output
Thermal Resistance
0.66°C/W
Output Voltage
3...150 V DC
Holding Current
50 mA
Range
Legacy
maximum output current
10 A AC
Voltage Drop
<1.6 V peak AC; <1.25 V on-state AC
Network Number of Phases
1 phase
Maximum I²t for fusing
1250 A².s 8.3 ms
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Switch Function
SPST
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Overload Current
24 A for 1 second
Load Current
10 A at nominal load; 8 A incandescent lamp; 4.5 A motor
Maximum I²t for fusing
1250 A².s 8.3 ms

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 20 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 24 to 280V AC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
