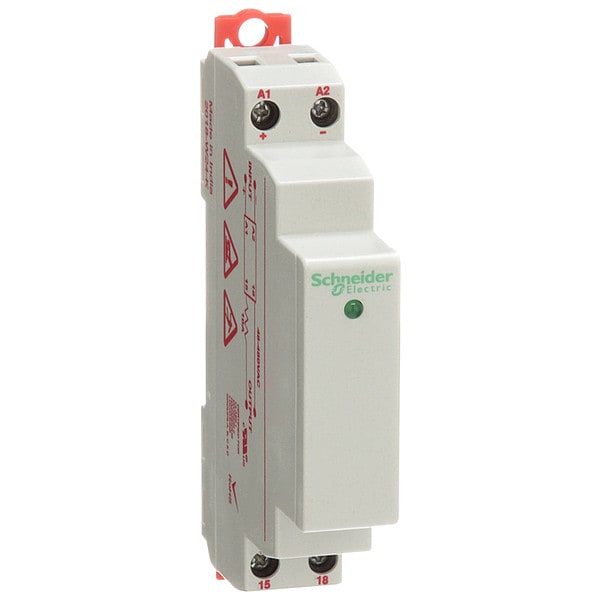

Schneider Electric Hazardous Location Solid State Relay, 10A 861HSSR410-AC-1

Hazardous Location Solid State Relay, 10A (Discontinued)

  • Mfr # 861HSSR410-AC-1
  • Zoro # G1011272
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
861HSSR410-AC-1
Zoro #
G1011272
UPC #
-
Country of Origin
India

Dimensions

Body Height - Relay
2.6 in
Body Width - Relay
3.5 in
Body Depth - Relay
0.7 in
Overall Height - Relay
2.6 in
Depth
3.54 in (89.93 mm)
Width
0.62 in (15.75 mm)
Height
2.56 in (65 mm)
Body Depth
2.6 in
Body Height
3.5 in
Body Width
0.62 in
Overall Depth
2.6 in

Details

Item
Hazardous Location Solid State Relay
Contact Form - Relay
SPST-NO
Case Color
Gray
Input Voltage
90 to 280V AC
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Heat Sink
Integral
Finger Safe
Yes
Item - Relay
Hazardous Location Solid State Relay
Voltage Output
48 to 480VAC
Output or Controlled Voltage Range
48 to 480V AC
Includes
Internal Heat Sink
Max. Output Amps w/Heat Sink
10 A
Mounting - Relay
DIN Rail
Phase
1
Input Power Consumption (Burden)
3.4VA
Switch Type
SCR
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Turns On At
Zero Cross
Mounting
DIN
Input or Control Voltage Range
90 to 280VAC
Relay Turns On At
Zero Crossing
Input or Control Voltage
90 to 280V AC
Max. Output w/Heat Sink
10A
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
IP Rating
IP20
Electrical Phase
Single
Maximum Output Current with Heat Sink
10 A
Switch Configuration
Form A
Response Time
40 msec
Drop Out Voltage
1.6V DC
Voltage Type
AC Output
Maximum Operating Temperature
176 Degrees F
Switch Component Type
SCR
Maximum Output Current without Heat Sink
10 A
Series
861H Series
Weight
4.48 oz
Status Indicator
Green LED Indicator
Output Switching Mode
Zero Crossing
Input Current
20 mA
Current Type
AC
Dielectric Strength
4,000V
Output Voltage Range
48 to 480V AC
Minimum Operating Temperature
-22 Degrees F
Overload Current
24 A for 1 second
Holding Current
50 mA
Must Release Voltage
10 V
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
maximum output current
10 A AC
Thermal Resistance
0.66°C/W
Load Current
10 A at nominal load; 8 A incandescent lamp; 4.5 A motor
Switching Device
SCR output; Zero voltage switching
Surge Current
500 A 1 cycle
Local Signalling
for input status 1 LED (green)
Network Number of Phases
1 phase
Voltage Drop
<1.6 V peak AC; <1.25 V on-state AC
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Mounting Support
Panel; DIN rail
Product Certifications
CE; CSA; UL
Tightening Torque
0.8 N.m for input/output
Leakage Current
6 mA at off-state 480 V AC
Maximum I²t for fusing
850 A².s 8.3 ms
Range
Legacy
Contacts Type and Composition
NO
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
Switch Function
SPST
Product Type
Solid state relay
Input Current Limits
20 mA at 240 V AC typical
Output Voltage
48...480 V AC
Control Circuit Voltage
90...280 V AC
DV/dt
350 V/µs off-state at maximum rated voltage
Maximum I²t for fusing
850 A².s 8.3 ms

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 20 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 480V AC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
