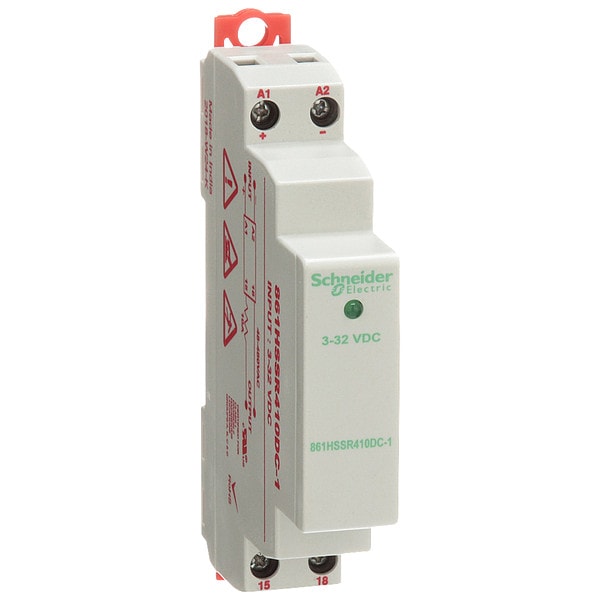

Schneider Electric Hazardous Location Solid State Relay, 10A 861HSSR410-DC-1

Hazardous Location Solid State Relay, 10A (Discontinued)

  • Mfr # 861HSSR410-DC-1
  • Zoro # G2017355
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
861HSSR410-DC-1
Zoro #
G2017355
UPC #
813032021314
Country of Origin
India

Dimensions

Overall Height - Relay
2.6 in
Body Depth - Relay
0.7 in
Body Width - Relay
3.5 in
Body Height - Relay
2.6 in
Depth
3.54 in (89.93 mm)
Height
2.56 in (65 mm)
Width
0.62 in (15.75 mm)
Body Depth
2.6 in
Body Height
3.5 in
Body Width
0.62 in
Overall Depth
2.6 in

Details

Item
Hazardous Location Solid State Relay
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Input or Control Voltage
3 to 32V DC
Heat Sink
Integral
Max. Output Amps w/Heat Sink
10 A
Mounting
DIN
Output or Controlled Voltage Range
48 to 480V AC
Turns On At
Zero Cross
Item - Relay
Hazardous Location Solid State Relay
Phase
1
Case Color
Gray
Contact Form - Relay
SPST-NO
Finger Safe
Yes
Input Voltage
3 to 32V DC
Includes
Internal Heat Sink
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Mounting - Relay
DIN Rail
Switch Type
SCR
Voltage Output
48 to 480VAC
Input Power Consumption (Burden)
0.1W
Relay Turns On At
Zero Crossing
Max. Output w/Heat Sink
10A
Input or Control Voltage Range
3 to 32VDC
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Maximum Output Current with Heat Sink
10 A
Dielectric Strength
4,000V
Response Time
0.1 msec
Drop Out Voltage
1.6V DC
Output Switching Mode
Zero Crossing
Maximum Operating Temperature
176 Degrees F
Maximum Output Current without Heat Sink
10 A
Switch Component Type
SCR
Minimum Operating Temperature
-22 Degrees F
Input Current
30 mA
Output Voltage Range
48 to 480V AC
Voltage Type
AC Output
Current Type
DC
Status Indicator
Green LED Indicator
Series
861H Series
IP Rating
IP20
Electrical Phase
Single
Weight
4.48 oz
Switch Configuration
Form A
Contacts Type and Composition
NO
Maximum I²t for fusing
850 A².s 8.3 ms
Product Type
Solid state relay
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
maximum output current
10 A AC
Protection Technology
Current limiter
Load Current
10 A at nominal load; 8 A incandescent lamp; 4.5 A motor
Overload Current
24 A for 1 second
Leakage Current
6 mA at off-state 480 V AC
Local Signalling
for input status 1 LED (green)
Range
Legacy
Surge Current
500 A 1 cycle
Network Number of Phases
1 phase
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Holding Current
50 mA
Protection Type
Reverse polarity protection
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
DV/dt
350 V/µs off-state at maximum rated voltage
Voltage Drop
<1.6 V peak AC; <1.25 V on-state AC
Product Certifications
CE; CSA; UL
Tightening Torque
0.8 N.m for input/output
Thermal Resistance
0.66°C/W
Input Current Limits
30 mA at 32 V DC typical
Control Circuit Voltage
3...32 V DC
Mounting Support
Panel; DIN rail
Switch Function
SPST
Switching Device
SCR output; Zero voltage switching
Output Voltage
48...480 V AC
Must Release Voltage
1 V
Maximum I²t for fusing
850 A².s 8.3 ms

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 30 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 480V AC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
