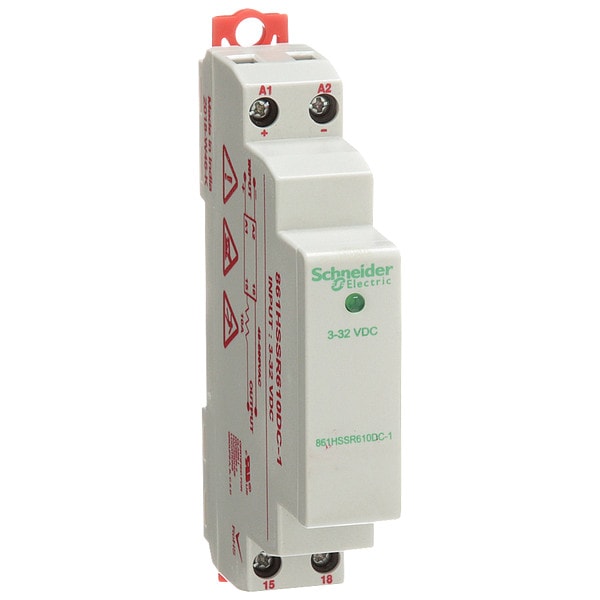

Schneider Electric Hazardous Location Solid State Relay, 10A 861HSSR610-DC-1

Hazardous Location Solid State Relay, 10A (Discontinued)

  • Mfr # 861HSSR610-DC-1
  • Zoro # G3118342
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
861HSSR610-DC-1
Zoro #
G3118342
UPC #
-
Country of Origin
India

Dimensions

Body Height - Relay
2.6 in
Overall Height - Relay
2.6 in
Body Width - Relay
3.5 in
Body Depth - Relay
0.7 in
Depth
3.54 in (89.93 mm)
Width
0.62 in (15.75 mm)
Height
2.56 in (65 mm)
Body Height
3.5 in
Body Depth
2.6 in
Overall Depth
2.6 in
Body Width
0.62 in

Details

Item
Hazardous Location Solid State Relay
Input Power Consumption (Burden)
0.1W
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Mounting - Relay
DIN Rail
Mounting
DIN
Input or Control Voltage
3 to 32V DC
Max. Output Amps w/Heat Sink
10 A
Finger Safe
Yes
Output or Controlled Voltage Range
48 to 600V AC
Heat Sink
Integral
Contact Form - Relay
SPST-NO
Max. Output w/Heat Sink
10A
Input or Control Voltage Range
3 to 32VDC
Includes
Internal Heat Sink
Voltage Output
48 to 600VAC
Case Color
Gray
Input Voltage
3 to 32V DC
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Item - Relay
Hazardous Location Solid State Relay
Turns On At
Zero Cross
Phase
1
Switch Type
SCR
Relay Turns On At
Zero Crossing
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Response Time
0.1 msec
Switch Configuration
Form A
Maximum Output Current with Heat Sink
10 A
Drop Out Voltage
1.6V DC
Minimum Operating Temperature
-22 Degrees F
Output Voltage Range
48 to 600V AC
Current Type
DC
Switch Component Type
SCR
Status Indicator
Green LED Indicator
Input Current
16 mA
Maximum Operating Temperature
176 Degrees F
Output Switching Mode
Zero Crossing
IP Rating
IP20
Voltage Type
AC Output
Series
861H Series
Electrical Phase
Single
Weight
4.48 oz
Dielectric Strength
4,000V
Maximum Output Current without Heat Sink
10 A
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Local Signalling
for input status 1 LED (green)
DV/dt
350 V/µs off-state at maximum rated voltage
Contacts Type and Composition
NO
Switching Device
SCR output; Zero voltage switching
Holding Current
50 mA
Must Release Voltage
1 V
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
Product Type
Solid state relay
Mounting Support
Panel; DIN rail
Input Current Limits
16 mA at 5 V DC typical
Maximum I²t for fusing
600 A².s 8.3 ms
maximum output current
10 A AC
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Overload Current
24 A for 1 second
Load Current
10 A at nominal load; 8 A incandescent lamp; 4.5 A motor
Output Voltage
48...600 V AC
Switch Function
SPST
Leakage Current
6 mA at off-state 600 V AC
Product Certifications
CE; CSA; UL
Range
Legacy
Protection Technology
Current limiter
Protection Type
Reverse polarity protection
Network Number of Phases
1 phase
Thermal Resistance
0.66°C/W
Surge Current
500 A 1 cycle
Control Circuit Voltage
3...32 V DC
Voltage Drop
<1.6 V peak AC; <1.25 V on-state AC
Tightening Torque
0.8 N.m for input/output
Maximum I²t for fusing
600 A².s 8.3 ms

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 16 mA, Input Voltage 3 to 32V DC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 600V AC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type SCR, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
