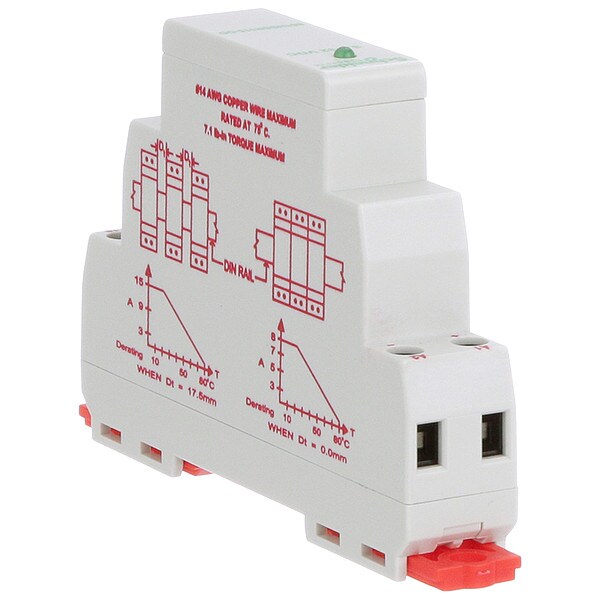

Schneider Electric Hazardous Location Solid State Relay, 15A 861HSSR115-DD

Hazardous Location Solid State Relay, 15A (Discontinued)

  • Mfr # 861HSSR115-DD
  • Zoro # G3317623
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
861HSSR115-DD
Zoro #
G3317623
UPC #
-
Country of Origin
India

Dimensions

Overall Height - Relay
2.6 in
Body Height - Relay
2.6 in
Body Depth - Relay
0.7 in
Body Width - Relay
3.5 in
Depth
3.54 in (89.93 mm)
Height
2.56 in (65 mm)
Width
0.62 in (15.75 mm)
Body Height
3.5 in
Body Width
0.62 in
Body Depth
2.6 in
Overall Depth
2.6 in

Details

Item
Hazardous Location Solid State Relay
Case Color
Gray
Heat Sink
Integral
Contact Form - Relay
SPST-NO
Input or Control Voltage Range
4 to 32VDC
Switch Type
MOSFET
Max. Output w/Heat Sink
15A
Includes
Internal Heat Sink
Input or Control Voltage
4 to 32V DC
Output or Controlled Voltage Range
3 to 50V DC
Input Power Consumption (Burden)
0.1W
Phase
1
Finger Safe
Yes
Mounting - Relay
DIN Rail
Relay Turns On At
Zero Crossing
Turns On At
Zero Cross
Max. Output Amps w/Heat Sink
15 A
Max. Output Amps Without Heat Sink
15.0 A Integral Heat Sink
Mounting
DIN
Item - Relay
Hazardous Location Solid State Relay
Voltage Output
3 to 50VDC
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Input Voltage
3.5 to 32V DC
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Current Type
DC
Response Time
5 msec
Minimum Operating Temperature
-22 Degrees F
Maximum Output Current without Heat Sink
15 A
Maximum Output Current with Heat Sink
15 A
Switch Configuration
Form A
Electrical Phase
Single
Drop Out Voltage
0.5V DC
IP Rating
IP20
Dielectric Strength
2,500V
Weight
4.48 oz
Input Current
12 mA
Voltage Type
DC Output
Output Voltage Range
3 to 50V DC
Status Indicator
Green LED Indicator
Series
861H Series
Maximum Operating Temperature
176 Degrees F
Switch Component Type
MOSFET
Output Voltage
3...50 V DC
Holding Current
20 mA
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Switch Function
SPST
Control Circuit Voltage
3.5...32 V DC
Range
Legacy
Product Type
Solid state relay
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
Surge Current
50 A 1 cycle
maximum output current
15 A DC
Leakage Current
0.1 mA at off-state 50 V DC
Network Number of Phases
1 phase
Switching Device
Mosfet output; DC switching
Mounting Support
Panel; DIN rail
Local Signalling
for input status 1 LED (green)
Thermal Resistance
1.4°C/W
Overload Current
24 A for 1 second
Must Release Voltage
1 V
Protection Technology
Current limiter
Contacts Type and Composition
NO
Voltage Drop
<0.5 V on-state DC
Tightening Torque
0.8 N.m for input/output
Product Certifications
CE; CSA; UL
Protection Type
Reverse polarity protection
Load Current
15 A at nominal load
Resistance
0.04 Ohm on-state
Input Current Limits
12 mA at 5 V DC typical

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 12 mA, Input Voltage 3.5 to 32V DC, Maximum Output Current with Heat Sink 15 A, Maximum Output Current without Heat Sink 15 A, Output Switching Mode Not Applicable, Output Voltage Range 3 to 50V DC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type MOSFET, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
