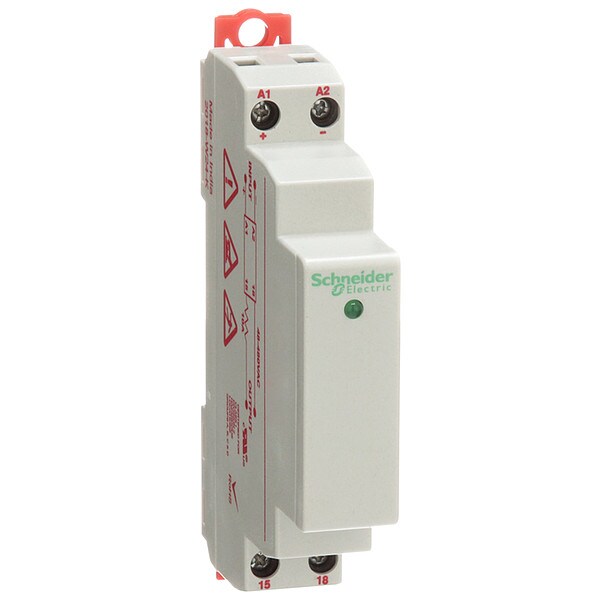

Schneider Electric Hazardous Location Solid State Relay, 40A 861HSSR610-AC-1

Hazardous Location Solid State Relay, 40A (Discontinued)

  • Mfr # 861HSSR610-AC-1
  • Zoro # G1245526
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
861HSSR610-AC-1
Zoro #
G1245526
UPC #
-
Country of Origin
India

Dimensions

Body Height - Relay
2.6 in
Overall Height - Relay
2.6 in
Body Depth - Relay
0.7 in
Body Width - Relay
3.5 in
Depth
3.54 in (89.93 mm)
Height
2.56 in (65 mm)
Width
0.62 in (15.75 mm)
Overall Depth
2.6 in
Body Width
0.62 in
Body Height
3.5 in
Body Depth
2.6 in

Details

Item
Hazardous Location Solid State Relay
Relay Turns On At
Zero Crossing
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Max. Output Amps w/Heat Sink
10 A
Heat Sink
Integral
Includes
Internal Heat Sink
Input or Control Voltage
90 to 280V AC
Item - Relay
Hazardous Location Solid State Relay
Voltage Output
48 to 600VAC
Turns On At
Zero Cross
Phase
1
Mounting
DIN
Contact Form - Relay
SPST-NO
Case Color
Gray
Output or Controlled Voltage Range
48 to 600V AC
Max. Output Amps Without Heat Sink
10.0 A Integral Heat Sink
Finger Safe
Yes
Input Voltage
90 to 280V AC
Max. Output w/Heat Sink
10A
Input or Control Voltage Range
90 to 280VAC
Mounting - Relay
DIN Rail
Switch Type
SCR
Input Power Consumption (Burden)
3.4VA
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Electrical Phase
Single
IP Rating
IP20
Weight
4.48 oz
Output Switching Mode
Zero Crossing
Maximum Output Current with Heat Sink
10 A
Minimum Operating Temperature
-22 Degrees F
Current Type
AC
Switch Component Type
SCR
Maximum Operating Temperature
176 Degrees F
Maximum Output Current without Heat Sink
10 A
Drop Out Voltage
1.6V DC
Series
861H Series
Dielectric Strength
4,000V
Switch Configuration
Form A
Voltage Type
AC Output
Status Indicator
Green LED Indicator
Response Time
40 msec
Input Current
12 mA
Output Voltage Range
48 to 600V AC
Local Signalling
for input status 1 LED (green)
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
Tightening Torque
0.8 N.m for input/output
Maximum I²t for fusing
600 A².s 8.3 ms
Input Current Limits
12 mA at 5 V DC typical
Switching Device
SCR output; Zero voltage switching
Output Voltage
48...600 V AC
Leakage Current
6 mA at off-state 600 V AC
Network Number of Phases
1 phase
Switch Function
SPST
Product Certifications
CE; CSA; UL
Overload Current
24 A for 1 second
Surge Current
500 A 1 cycle
Product Type
Solid state relay
Control Circuit Voltage
90...280 V AC
Range
Legacy
maximum output current
10 A AC
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Must Release Voltage
10 V
DV/dt
200 V/µs off-state at maximum rated voltage
Contacts Type and Composition
NO
Holding Current
50 mA
Thermal Resistance
0.66°C/W
Voltage Drop
<1.6 V peak AC; <1.25 V on-state AC
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Load Current
10 A at nominal load; 8 A incandescent lamp; 4.5 A motor
Mounting Support
Panel; DIN rail
Maximum I²t for fusing
600 A².s 8.3 ms

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 12 mA, Input Voltage 90 to 280V AC, Maximum Output Current with Heat Sink 10 A, Maximum Output Current without Heat Sink 10 A, Output Switching Mode Zero Crossing, Output Voltage Range 48 to 600V AC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type SCR, Current Type AC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
