  7. Hazardous Location Solid State Relay, 8A

This item is Discontinued.

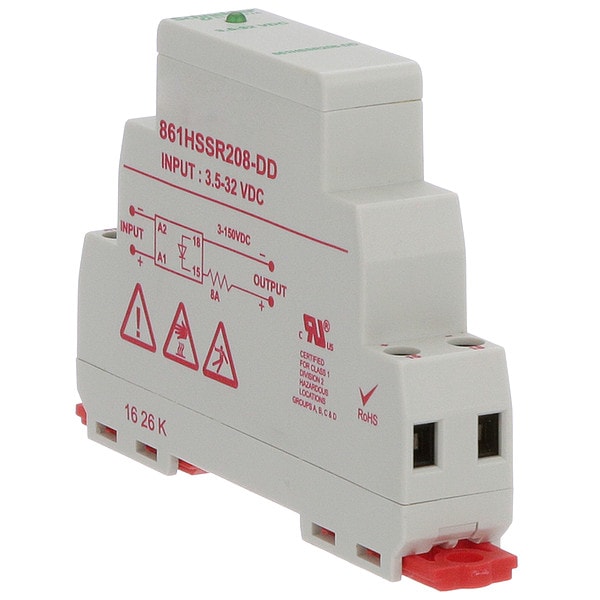

Schneider Electric Hazardous Location Solid State Relay, 8A 861HSSR208-DD

Hazardous Location Solid State Relay, 8A (Discontinued)

  • Mfr # 861HSSR208-DD
  • Zoro # G0594571
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
861HSSR208-DD
Zoro #
G0594571
UPC #
-
Country of Origin
India

Dimensions

Overall Height - Relay
2.6 in
Body Depth - Relay
0.7 in
Body Width - Relay
3.5 in
Body Height - Relay
2.6 in
Depth
3.54 in (89.93 mm)
Height
2.56 in (65 mm)
Width
0.62 in (15.75 mm)
Body Depth
2.6 in
Body Height
3.5 in
Body Width
0.62 in
Overall Depth
2.6 in

Details

Item
Hazardous Location Solid State Relay
Mounting - Relay
DIN Rail
Max. Output Amps w/Heat Sink
8 A
Max. Output w/Heat Sink
8A
Heat Sink
Integral
Mounting
DIN
Output or Controlled Voltage Range
3 to 150V DC
Voltage Output
3 to 150VDC
Item - Relay
Hazardous Location Solid State Relay
Includes
Internal Heat Sink
Max. Output Amps Without Heat Sink
8.0 A Integral Heat Sink
Finger Safe
Yes
Input or Control Voltage
4 to 32V DC
Switch Type
MOSFET
Input Voltage
3.5 to 32V DC
Contact Form - Relay
SPST-NO
Standards
CE Certified, Class I Division 2, CSA Certified, UL Listed
Case Color
Gray
Input or Control Voltage Range
4 to 32VDC
Phase
1
Relay Turns On At
Zero Crossing
Input Power Consumption (Burden)
0.1W
Turns On At
Zero Cross
Mounting Style
DIN Rail & Panel
Electrical Connection
Screw Clamp
Series
861H Series
Current Type
DC
Response Time
5 msec
Output Voltage Range
3 to 150V DC
Voltage Type
DC Output
Minimum Operating Temperature
-22 Degrees F
Switch Component Type
MOSFET
Maximum Operating Temperature
176 Degrees F
IP Rating
IP20
Drop Out Voltage
0.5V DC
Maximum Output Current without Heat Sink
8 A
Electrical Phase
Single
Status Indicator
Green LED Indicator
Maximum Output Current with Heat Sink
8 A
Dielectric Strength
2,500V
Input Current
12 mA
Switch Configuration
Form A
Weight
4.48 oz
Product Type
Solid state relay
Switching Device
Mosfet output; DC switching
Surge Current
35 A 1 cycle
Voltage Drop
<0.5 V on-state DC
Holding Current
20 mA
Thermal Resistance
0.5°C/W
Connections Terminals
Input/output screw clamp terminal 0.00 in² (2.5 mm²) AWG 14)
Ambient Air Temperature for Operation
-22 to 176°F (-30 to 80°C)
Ambient Air Temperature for Storage
-40 to 212°F (-40 to 100°C)
Output Voltage
3...150 V DC
Switch Function
SPST
Load Current
8 A at nominal load
Must Release Voltage
1 V
Mounting Support
Panel; DIN rail
Network Number of Phases
1 phase
Overload Current
17 A for 1 second
Product Certifications
CE; CSA; UL
Protection Technology
Current limiter
Range
Legacy
Resistance
0.04 Ohm on-state
Protection Type
Reverse polarity protection
Contacts Type and Composition
NO
Tightening Torque
0.8 N.m for input/output
Leakage Current
0.1 mA at off-state 150 V DC
maximum output current
8 A DC
Local Signalling
for input status 1 LED (green)
Control Circuit Voltage
3.5...32 V DC
Input Current Limits
12 mA at 5 V DC typical

Description

Hazardous Location Solid State Relay, Electrical Connection Screw Clamp, Heat Sink Integral, Input Current 12 mA, Input Voltage 3.5 to 32V DC, Maximum Output Current with Heat Sink 8 A, Maximum Output Current without Heat Sink 8 A, Output Switching Mode Not Applicable, Output Voltage Range 3 to 150V DC, Standards CE Certified, Class I Division 2, CSA Certified, UL Listed, Switch Component Type MOSFET, Current Type DC, Electrical Phase Single, Finger Safe Yes, Mounting Style DIN Rail & Panel
